TPS3600D20PW

电池备份监事低功耗处理器 BATTERY-BACKUP SUPERVISORS FOR LOW-POWER PROCESSORS

The TPS3600 family of supervisory circuits monitor and control processor activity. In case of power-fail or brownout conditions, the backup-battery switchover function of TPS3600 allows to run a low-power processor and its peripherals from the installed backup battery without asserting a reset beforehand.

During power on, RESET is asserted when the supply voltage VDD or VBAT becomes higher than Vres. Thereafter, the supply voltage supervisor monitors VOUT and keeps RESET output active as long as VOUT remains below the threshold voltage VIT. An internal timer delays the return of the output to the inactive state high to ensure proper system reset. This delay timer starts its time-out, after VOUT has risen above the threshold voltage VIT. In case of a brownout or power failure of both supply sources, a voltage drop below the threshold voltage VIT get detected and the output becomes active low again.

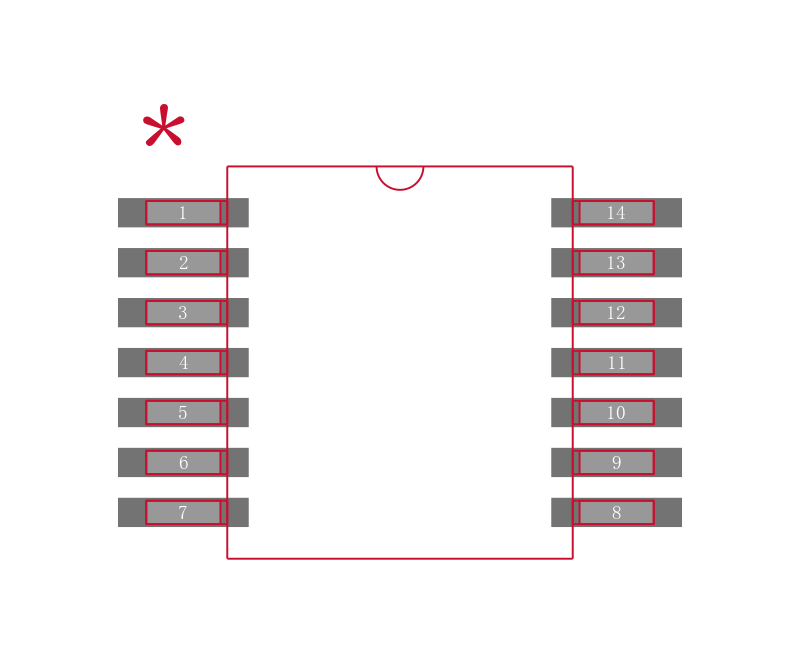

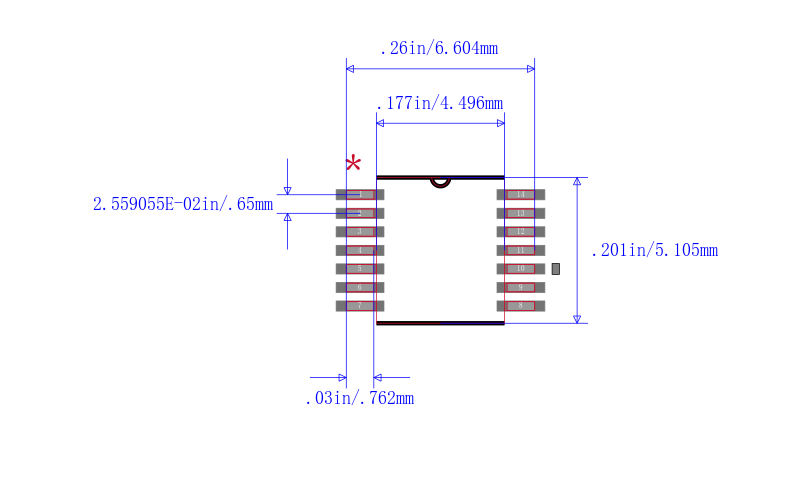

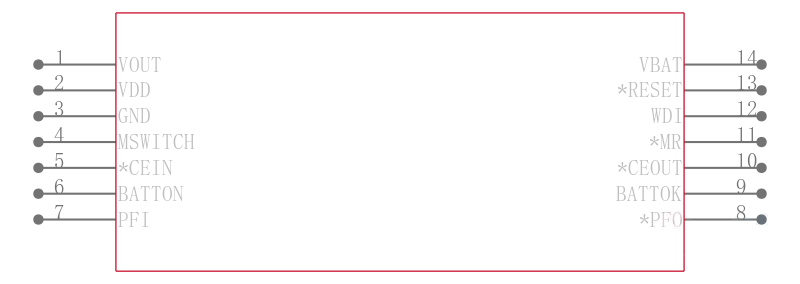

The product spectrum is designed for supply voltages of 2 V, 2.5 V, 3.3 V, and 5 V. The circuits are available in a 14-pin TSSOP package. They are characterized for operation over a temperature range of -40°C to 85°C.
