1.6兆赫, 3 V至6 V的输入, 3 -A同步降压型转换器SWIFT⑩禁用塌陷启动时 1.6 MHz, 3-V TO 6-V INPUT, 3-A SYNCHRONOUS STEP-DOWN SWIFT⑩ CONVERTER WITH DISABLED SINKING DURING START-UP
As a member of the SWIFT™ family of dc/dc regulators, the TPS54377 low-input-voltage high-output-current synchronous-buck PWM converter integrates all required active components. Included on the substrate with the listed features are a true, high performance, voltage error amplifier that provides high performance under transient conditions; an undervoltage-lockout circuit to prevent start-up until the input voltage reaches 3 V; an internally and externally set slow-start circuit to limit in-rush currents; and a power good output useful for processor/logic reset, fault signaling, and supply sequencing.
For reliable power up in output precharge applications, the TPS54377 is designed to only source current during start-up.
The TPS54377 device is available in a thermally enhanced 24-pin QFN RHF PowerPAD package, which eliminates bulky heatsinks. provides evaluation modules and the SWIFT designer software tool to aid in achieving high-performance power supply designs to meet aggressive equipment development cycles.
频率 1.60 MHz
输出接口数 1
输入电压DC 3.00 V
输出电压 0.9V ~ 3.3V
输出电流 3 A
静态电流 6.20 mA
调节输出数 1
开关频率 350kHz, 550kHz
过温保护 Yes
拓扑结构 Buck
输入电压Max 6 V
输入电压Min 3 V
输出电压Max 5.4 V
输出电压Min 0.891 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 3 V
输入电压 3V ~ 6V
安装方式 Surface Mount

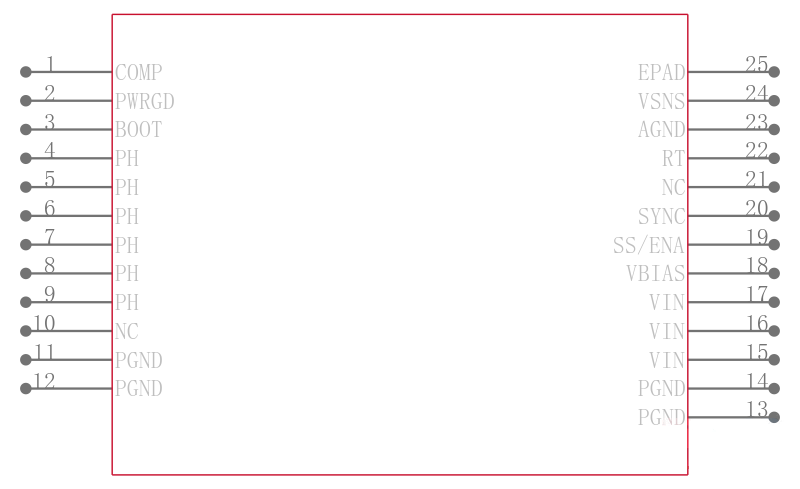

引脚数 24

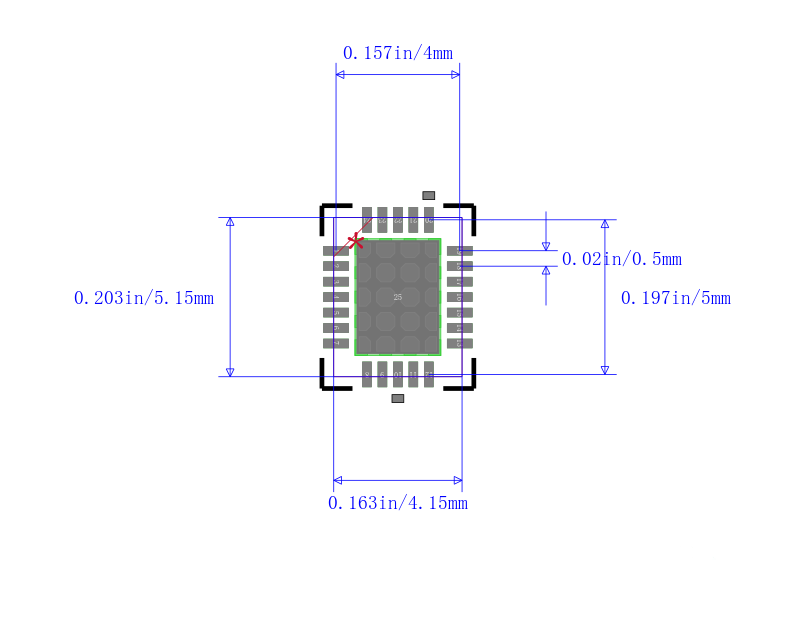

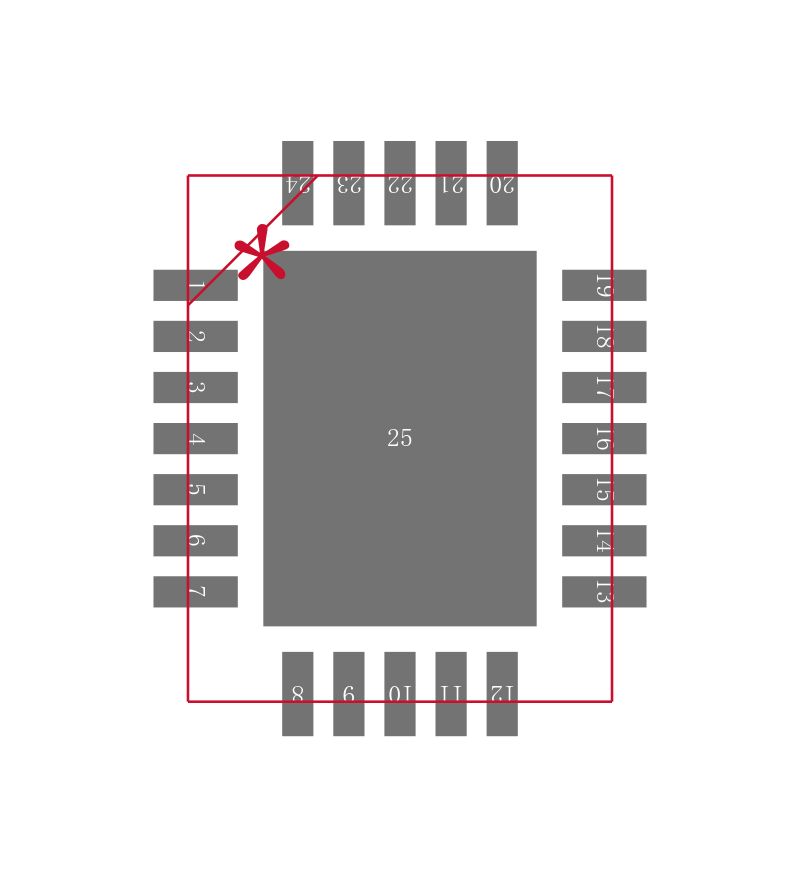

封装 VQFN-24
封装 VQFN-24
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS54377RHFT TI 德州仪器 | 当前型号 | 当前型号 |
TPS54377RHFR 德州仪器 | 完全替代 | TPS54377RHFT和TPS54377RHFR的区别 |
