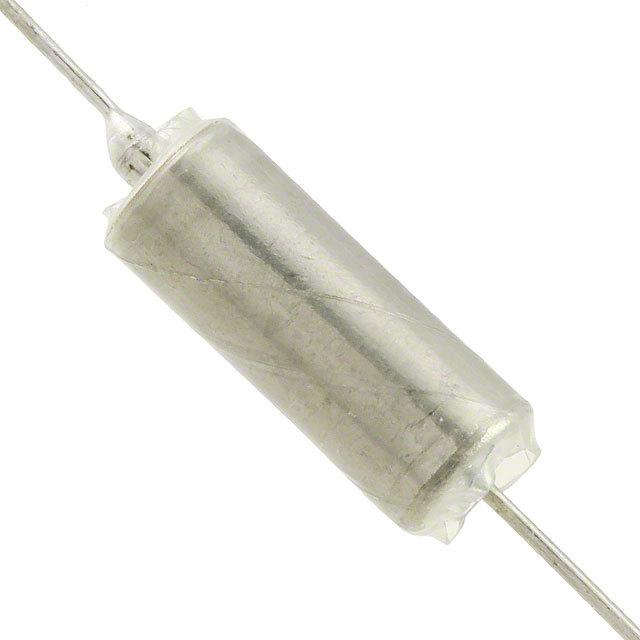

KEMET T110B475K050AT 钽电容, 4.7uF 10%容差 50V
This capacitor from Kemet is made from tantalum solid and has a high capacitance value with a low footprint design. It can withstand a voltage of 50 VDC. Its leakage current is 1.7 μA. This solid capacitor has a maximum operating temperature of 125 °C. The T110B475K050AT solid capacitor has an axial termination style. Its capacitance value is 4.7uF. It has a tolerance of 10%. This product is 12.04 mm long with a diameter of 4.7 mm.
额定电压DC 50.0 V
电容 4.7 µF
等效串联电阻ESR 2.5 Ω
容差 ±10 %
产品系列 T110
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Through Hole
引脚数 2
封装 Axial
长度 12.04 mm
高度 12.04 mm
直径 Φ4.70mm
封装 Axial
介质材料 Tantalum
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
最小包装 1
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
T110B475K050AT KEMET Corporation 基美 | 当前型号 | 当前型号 |
T110B475K035AT 基美 | 类似代替 | T110B475K050AT和T110B475K035AT的区别 |
M39003/01-2368 威世 | 功能相似 | T110B475K050AT和M39003/01-2368的区别 |
M39003/01-2608 威世 | 功能相似 | T110B475K050AT和M39003/01-2608的区别 |
