具有反向电流保护无电容NMOS 400毫安低压差稳压器 CAP-FREE NMOS 400 mA LOW-DROPOUT REGULATORS WITH REVERSE CURRENT PROTECTION
PMIC - 稳压器 - 线性 正 固定 1 输出 400mA SOT-23-5
德州仪器TI:
Enhanced product, cap-free NMOS, 400-mA low-dropout regulator with reverse current protection
贸泽:
低压差稳压器 Mil Enh Cap-Free NMOS 400-mA LDO Reg
艾睿:
Say goodbye to unstable voltages with this LDO TPS73630MDBVREP linear regulator from Texas Instruments. Its typical dropout voltage at current is 0.075@400mA V. It has an overall accuracy of ±0.5 %. This device has a maximum power dissipation of 556 mW. This voltage regulation device&s;s single output can produce a current up to 0.4 A. By only needing an input voltage of 1.7 V with a maximum of 5.5 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 3 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 0.002%/mATyp and line regulation of 0.01%/VTyp. Its maximum power dissipation is 556 mW. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. The maximum dropout voltage is 0.2@400mA V. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -55 °C and a maximum of 125 °C.
安富利:
LDO Regulator Pos 3V 0.4A 5-Pin SOT-23 T/R
Win Source:
IC REG LDO 3V 0.4A SOT23-5
输出接口数 1
输入电压DC 5.50V max
输出电压 3 V
输出电流 400 mA
供电电流 550µA ~ 1mA
耗散功率 0.556 W
静态电流 400 µA
输出电容类型 Ceramic
跌落电压 0.075V @400mA
调节输出数 1
输入电压Max 5.5 V
输入电压Min 1.7 V
输出电压Min 3 V
输出电流Max 0.4 A
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 556 mW
精度 ±0.5 %
输入电压 ≤5.5 V
安装方式 Surface Mount
引脚数 5

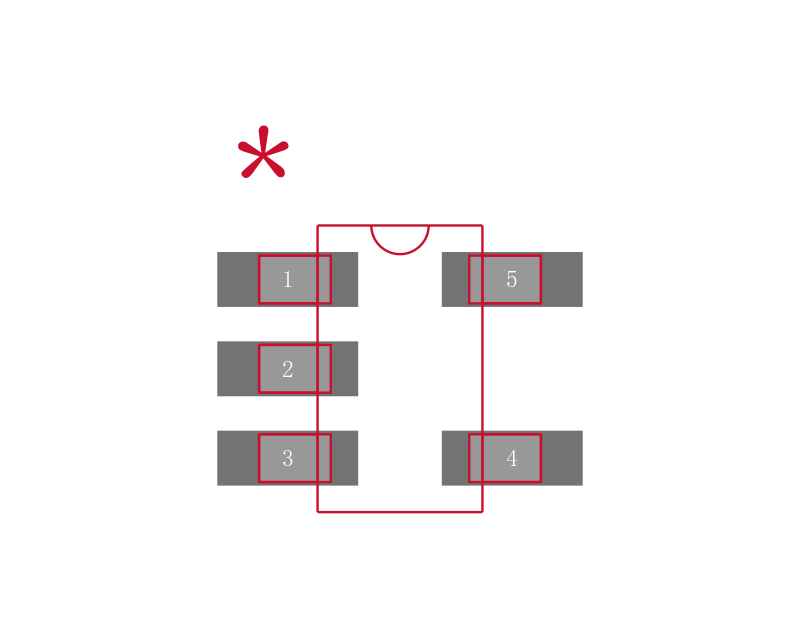

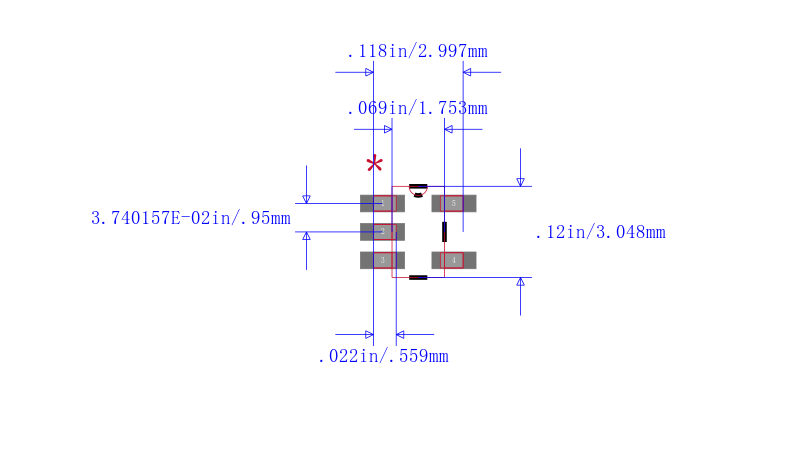

封装 SOT-23-5
长度 2.9 mm
宽度 1.6 mm
高度 1.15 mm
封装 SOT-23-5
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS73630MDBVREP TI 德州仪器 | 当前型号 | 当前型号 |
TPS73630DBVR 德州仪器 | 类似代替 | TPS73630MDBVREP和TPS73630DBVR的区别 |
TPS73630DBVTG4 德州仪器 | 类似代替 | TPS73630MDBVREP和TPS73630DBVTG4的区别 |
TPS73630DBVRG4 德州仪器 | 类似代替 | TPS73630MDBVREP和TPS73630DBVRG4的区别 |
