开关稳压器 DC-DC converter
Adjust the voltage level of your devices with this step down DC to DC converter from Texas Instruments. This converter"s single output can produce a current up to 3.5 A. Using the part will provide the power your application needs by requiring a voltage only of 4.5 V and not exceeding a voltage of 60 V. With an adjustable output that has a voltage of 0.8 to 58.8 V, this is power management at its best. It has a switching frequency of 450 to 550 kHz. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.
输出接口数 1
输出电压 0.8V ~ 58.8V
输出电流 3.5 A
静态电流 152 µA
调节输出数 1
开关频率 100kHz ~ 2.5MHz
拓扑结构 Buck
输入电压Max 60 V
输入电压Min 4.5 V
输出电压Max 58.8 V
输出电压Min 0.8 V
输出电流Max 3.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 60 V
安装方式 Surface Mount
引脚数 10

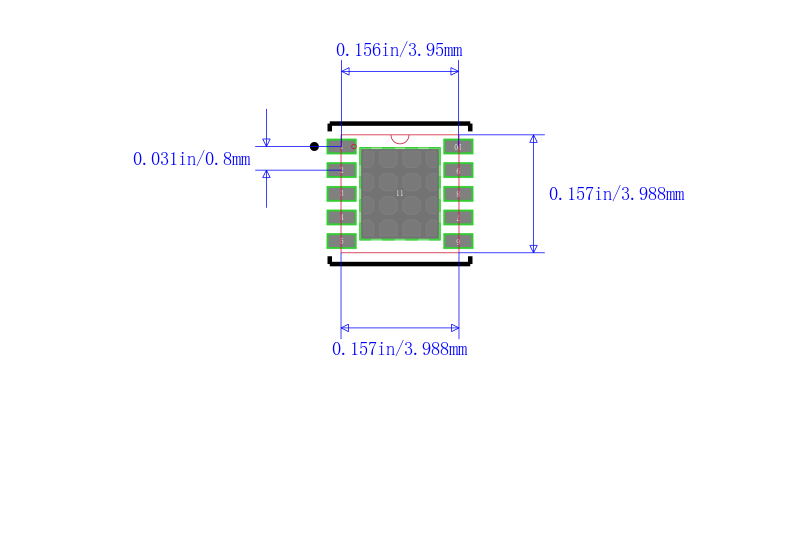

封装 WDFN-10
封装 WDFN-10
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TPS54361QDPRTQ1 TI 德州仪器 | 当前型号 | 当前型号 |
TPS54361QDPRRQ1 德州仪器 | 类似代替 | TPS54361QDPRTQ1和TPS54361QDPRRQ1的区别 |
