快速瞬态响应3 -A低压差稳压器 FAST-TRANSIENT RESPONSE 3-A LOW-DROPOUT VOLTAGE REGULATORS
Keep calm and stay stable by implementing this LDO linear regulator developed by Texas Instruments. Its typical dropout voltage at current is 0.15@3A V. It has an overall accuracy of ±3 %. This voltage regulation device"s single output can produce a current up to 3 A. With a small input voltage of 2.8 V and a max of 5.5 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 1.5 V, this is power management at its best. At a load regulation of 0.35%/VTyp and line regulation of 0.04%/VTyp a constant current can be produced at the output of your circuit. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
输出接口数 1
输入电压DC 5.50V max
输出电压 1.5 V
输出电流 3 A
供电电流 200 µA
静态电流 0.125 mA
输出电容类型 Tantalum
跌落电压 0.15V @3A
调节输出数 1
输入电压Max 5.5 V
输入电压Min 2.8 V
输出电压Min 1.5 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±3 %
输入电压 2.8V ~ 5.5V
安装方式 Surface Mount
引脚数 5

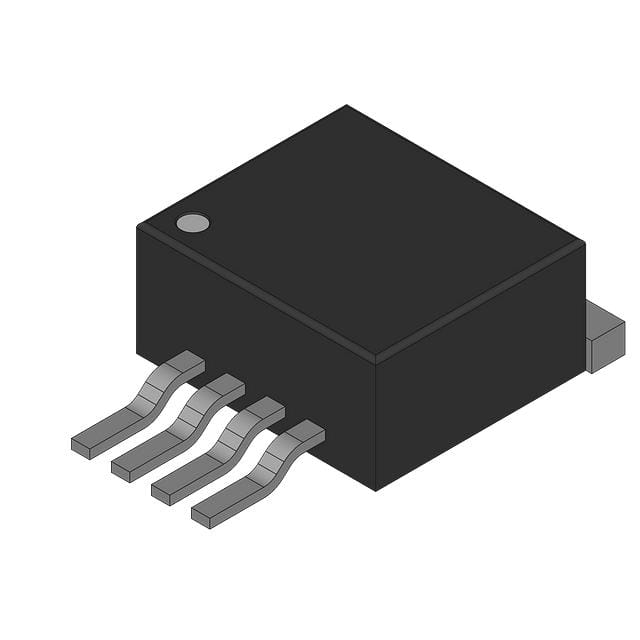

封装 TO-263-6
封装 TO-263-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS75715KTTT TI 德州仪器 | 当前型号 | 当前型号 |
TPS75715KTTR 德州仪器 | 类似代替 | TPS75715KTTT和TPS75715KTTR的区别 |
TPS75715KTTRG3 德州仪器 | 功能相似 | TPS75715KTTT和TPS75715KTTRG3的区别 |
TPS75715KTT 德州仪器 | 功能相似 | TPS75715KTTT和TPS75715KTT的区别 |
