快速瞬态响应500 mA低压差稳压器 FAST-TRANSIENT-RESPONSE 500-mA LOW-DROPOUT VOLTAGE REGULATORS
description
The TPS775xx devices are designed to have a fast transient response and be stable with a 10-μF low ESR capacitors. This combination provides high performance at a reasonable cost.
Controlled Baseline
− One Assembly/Test Site, One Fabrication Site
Extended Temperature Performance of −55°C to 125°C
Enhanced Diminishing Manufacturing Sources DMS Support
Enhanced Product Change Notification
Qualification Pedigree†
Open Drain Power-On Reset With 200-ms Delay
500-mA Low-Dropout Voltage Regulator
Available in 1.5-V, 1.6-V, 1.8-V, 2.5-V, 3.3-V Fixed Output and Adjustable Versions
Dropout Voltage to 169 mV Typ at 500 mATPS77533
Ultralow 85 μA Typical Quiescent Current
Fast Transient Response
2% Tolerance Over Specified Conditions for Fixed-Output Versions
20-Pin TSSOP PowerPAD™ PWP Package
Thermal Shutdown Protection
输出接口数 1
输出电压 1.8 V
输出电流 500 mA
供电电流 125 µA
耗散功率 7.2 W
静态电流 0.085 mA
输出电容类型 Tantalum
跌落电压 169 mV
调节输出数 1
输入电压Max 10 V
输入电压Min 2.7 V
输出电压Min 1.8 V
输出电流Max 0.5 A
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 7200 mW
精度 ±2 %
输入电压 10V ~ 2.7V
安装方式 Surface Mount
引脚数 20

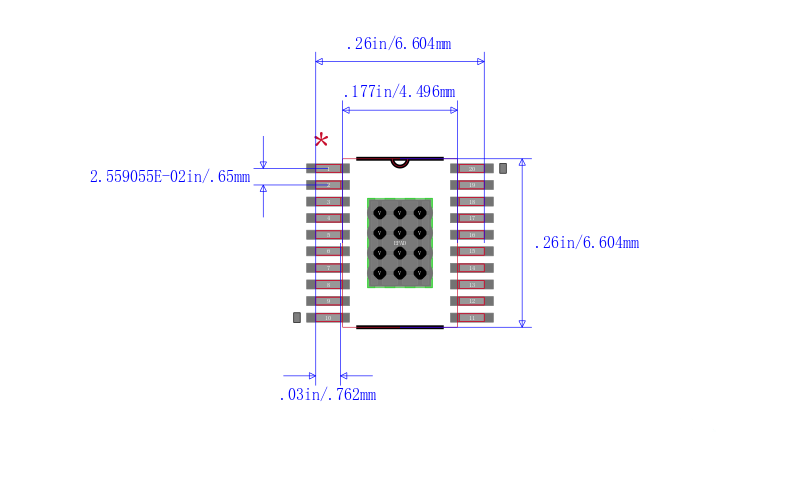

封装 HTSSOP-20
长度 6.5 mm
宽度 4.4 mm
高度 1.15 mm
封装 HTSSOP-20
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
