POWER GOOD快速瞬态响应2 -A低压差稳压器 POWER GOOD FAST-TRANSIENT-RESPONSE 2-A LOW-DROPOUT VOLTAGE REGULATORS
Linear Voltage Regulator IC 1 Output 2A 20-HTSSOP
得捷:
IC REG LINEAR 2.5V 2A 20HTSSOP
立创商城:
正 Vin=5V Vout=2.5V 2A 60dB@100Hz
贸泽:
LDO Voltage Regulators Mil Enh Fast Trans Resp Vltg Regs
艾睿:
Control the voltage level of your circuit with this LDO TPS75225QPWPREP linear regulator from Texas Instruments. Its typical dropout voltage at current is 0.21@2A V. It has an overall accuracy of ±2 %. This device has a maximum power dissipation of 7200 mW. This voltage regulation device&s;s single output can produce a current up to 2 A. With a small input voltage of 2.7 V and a max of 5 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 2.5 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 1mVTyp and line regulation of 0.01%Typ. Its maximum power dissipation is 7200 mW. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.
安富利:
LDO Regulator Pos 2.5V 2A 20-Pin HTSSOP EP T/R
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 2.5V 2A 20-HTSSOP
输出接口数 1
输出电压 2.5 V
输出电流 2 A
耗散功率 7.2 W
静态电流 0.075 mA
输出电容类型 Tantalum
跌落电压 210 mV
调节输出数 1
输入电压Max 5 V
输入电压Min 2.7 V
输出电流Max 2 A
工作温度Max 125 ℃
工作温度Min 40 ℃
耗散功率Max 7200 mW
精度 ±2 %
输入电压 2.7V ~ 5V
安装方式 Surface Mount
引脚数 20

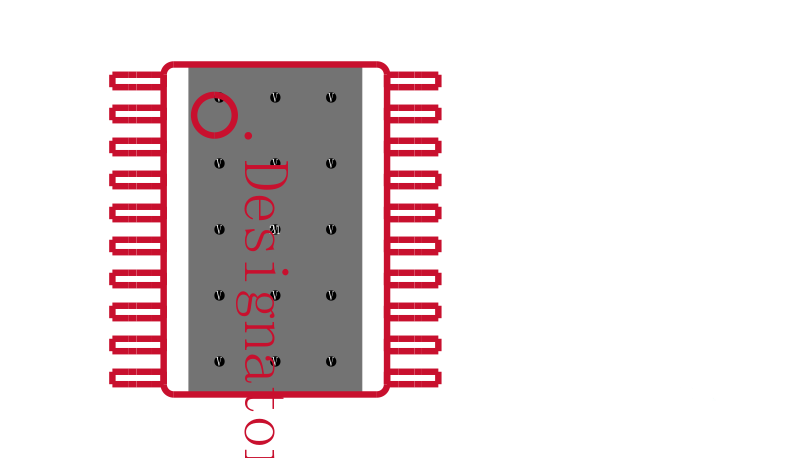

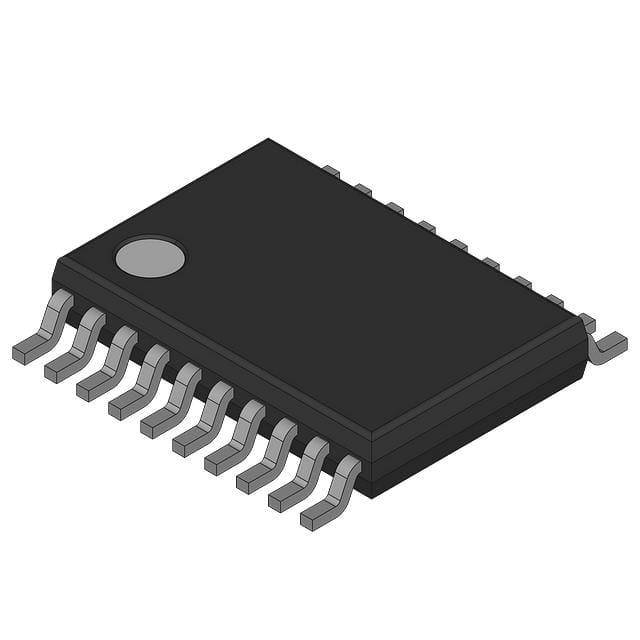

封装 HTSSOP-20
长度 6.5 mm
宽度 4.4 mm
高度 1.15 mm
封装 HTSSOP-20
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS75225QPWPREP TI 德州仪器 | 当前型号 | 当前型号 |
TPS76733QPWP 德州仪器 | 类似代替 | TPS75225QPWPREP和TPS76733QPWP的区别 |
TPS77533PWP 德州仪器 | 类似代替 | TPS75225QPWPREP和TPS77533PWP的区别 |
TPS76815QPWP 德州仪器 | 类似代替 | TPS75225QPWPREP和TPS76815QPWP的区别 |
