TPIC6B595DWRG4

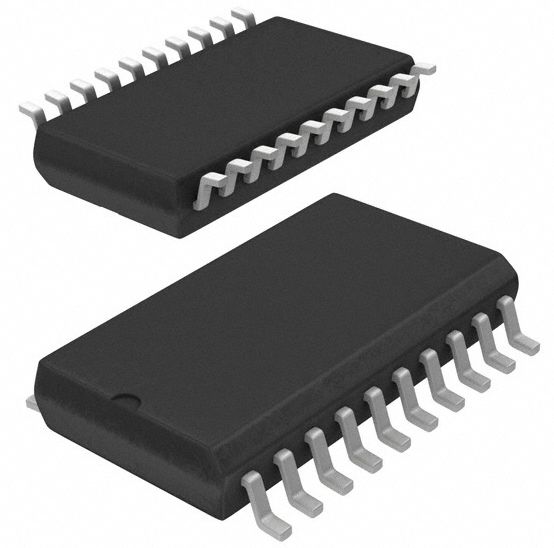

TEXAS INSTRUMENTS  TPIC6B595DWRG4  移位寄存器, 功率逻辑, 串行至并行, 1元件, SOIC, 20 引脚, 4.5 V, 5.5 V

The is a 8-bit Shift Register designed for use in systems that require relatively high load power. The device contains a built-in voltage clamp on the outputs for inductive transient protection. Power driver applications include relays, solenoids and other medium current or high-voltage loads. This device contains an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. Data transfers through the shift and storage registers on the rising edge of the shift-register clock SRCK and the register clock RCK, respectively. The storage register transfers data to the output buffer when shift-register clear SRCLR\\ is high. When SRCLR\ is low, the input shift register is cleared. When output enable G\\ is held high, all data in the output buffers is held low and all drain outputs are off. When G\ is held low, data from the storage register is transparent to the output buffers.

.

Eight power DMOS transistor outputs of 150mA continuous current

.

Can be Cascadable

.

Low power consumption

.

5R Typical low rDSon

.

30mJ Avalanche energy

.

50V Output clamp voltage

.

Green product and no Sb/Br
