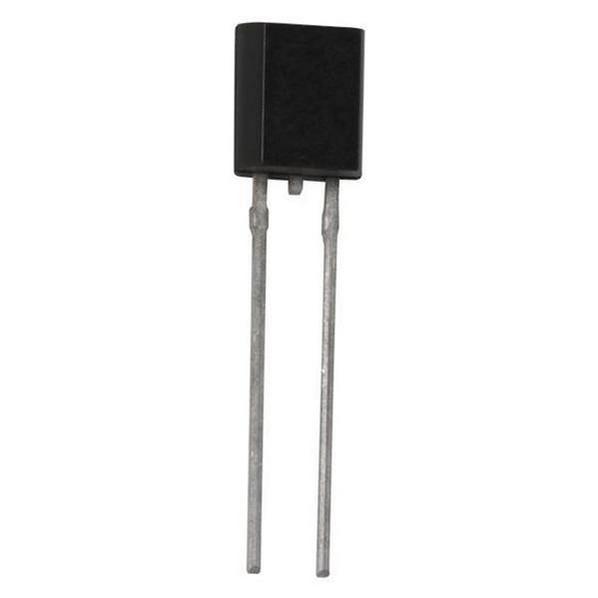

TISP4260F3LM

双向晶闸管过电压保护 BIDIRECTIONAL THYRISTOR OVERVOLTAGE PROTECTORS

Description

These devices are designed to limit overvoltages on the telephone line. Overvoltages are normally caused by a.c. power system or lightning flash disturbances which are induced or conducted on to the telephone line. A single device provides 2-point protection and is typically used for the protection of 2-wire telecommunication equipment e.g. between the Ring to Tip wires for telephones and modems. Combinations of devices can be used for multi-point protection e.g. 3-point protection between Ring, Tip and Ground.

The protector consists of a symmetrical voltage-triggered bidirectional thyristor. Overvoltages are initially clipped by breakdown clamping until the voltage rises to the breakover level, which causes the device to crowbar into a low-voltage on state. This low-voltage on state causes the current resulting from the overvoltage to be safely diverted through the device. The high crowbar holding current prevents d.c.latchup as the diverted current subsides.
