具有自动方向感应和15 kV ESD保护的4位双向电压电平转换器 4-BIT BIDIRECTIONAL VOLTAGE-LEVEL TRANSLATOR WITH AUTOMATIC DIRECTION SENSING AND 15-kV ESD PROTECTION
* 1.2 V to 3.6 V on A Port and 1.65 V to 5.5 V on B Port VCCA ≤ VCCB * VCC Isolation Feature – If Either VCC Input Is at GND, All Outputs Are in the High-Impedance State * OE Input Circuit Referenced to VCCA * Low Power Consumption, 5-µA Max ICC * Ioff Supports Partial-Power-Down Mode Operation * Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II * ESD Protection Exceeds JESD 22 * A Port * 2500-V Human-Body Model A114-B * 1500-V Charged-Device Model C101 * B Port * ±15-kV Human-Body Model A114-B * 1500-V Charged-Device Model C101
电源电压DC 1.20V ~ 5.50V
电路数 1
通道数 4
位数 4
数据速率 100 Mbps
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 1.2 V
安装方式 Surface Mount
引脚数 14

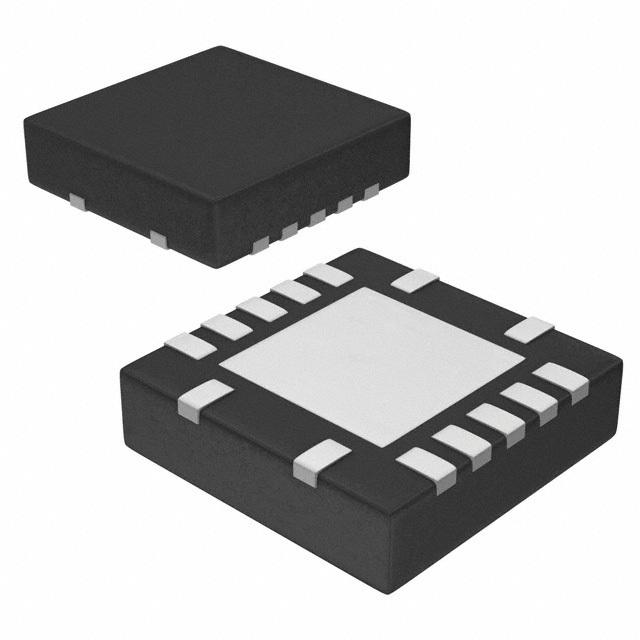

封装 VQFN-14
封装 VQFN-14
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TXB0104RGYRG4 TI 德州仪器 | 当前型号 | 当前型号 |
TXB0104RGYR 德州仪器 | 类似代替 | TXB0104RGYRG4和TXB0104RGYR的区别 |
