8位可寻址锁存器
This d-type low-level latch from Texas Instruments creates a barrier of information and will open once it is enabled. With an open drain output, this is power management at its best. This latch has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. It has 8 channels per chip.
输出接口数 8
输出电流 500 mA
电路数 1
位数 8
输入数 1
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount

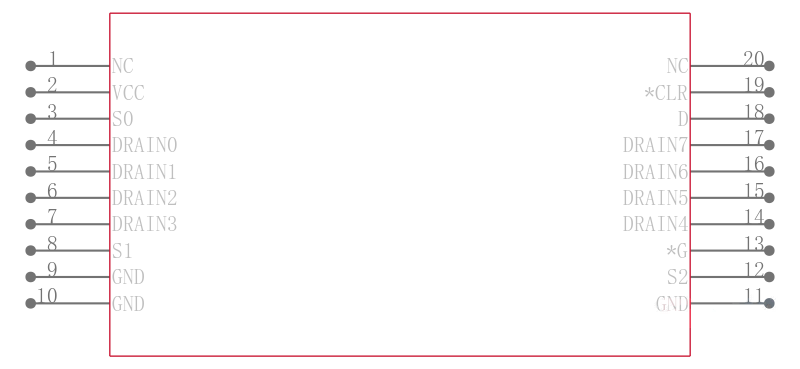

引脚数 20
封装 SOIC-20
长度 12.8 mm
宽度 7.52 mm
高度 2.35 mm
封装 SOIC-20
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TPIC6B259DWRG4 TI 德州仪器 | 当前型号 | 当前型号 |
TPIC6B259DW 德州仪器 | 完全替代 | TPIC6B259DWRG4和TPIC6B259DW的区别 |
TPIC6B259DWG4 德州仪器 | 完全替代 | TPIC6B259DWRG4和TPIC6B259DWG4的区别 |
TPIC6B259DWR 德州仪器 | 完全替代 | TPIC6B259DWRG4和TPIC6B259DWR的区别 |
