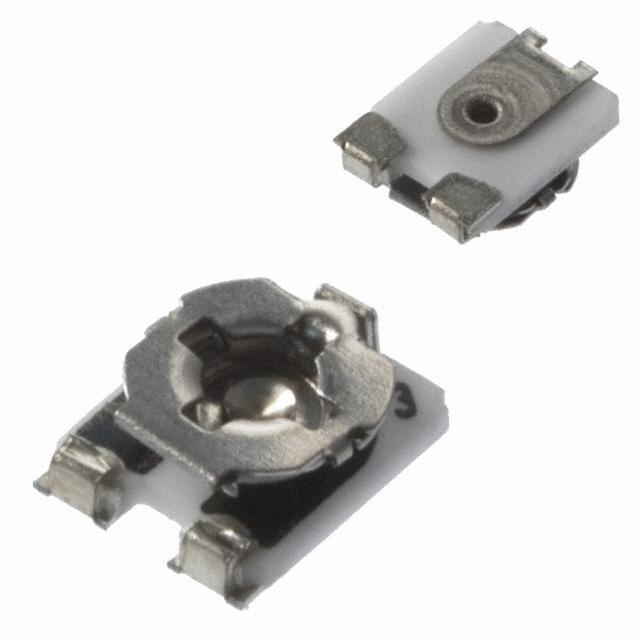

Res Trimmer 500KΩ 25% 0.1W1/10W 1Elec/1MechTurns 3 X 3.8mm Foot Print SMD T/R
Optimization and calibration of resistance in a circuit has never been easier with this potentiometer from Bourns! This dependable part has a power rating of 0.1 1/10 W. This product has a resistance value of 500K Ohm. Its temperature coefficient is ±250 ppm/°C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This part has an operating temperature of -40 to 100 °C. This product is 3 mm long and 3.8 mm. The TC33X-2-504E part has a foot print termination style.
容差 ±25 %
额定功率 0.1 W
电阻 500 kΩ
工作温度Max 100 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
封装 Square - 0.150" L x 0.118" W x 0.047" H 3.80mm x 3.00mm x 1.20mm
长度 3 mm
宽度 3.8 mm
高度 1.2 mm
封装 Square - 0.150" L x 0.118" W x 0.047" H 3.80mm x 3.00mm x 1.20mm
工作温度 -40℃ ~ 100℃
温度系数 ±250 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TC33X-2-504E Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
TC33X-2-504G 伯恩斯 | 类似代替 | TC33X-2-504E和TC33X-2-504G的区别 |
TC73X-1-504E 伯恩斯 | 功能相似 | TC33X-2-504E和TC73X-1-504E的区别 |
