TVX1J330MAD

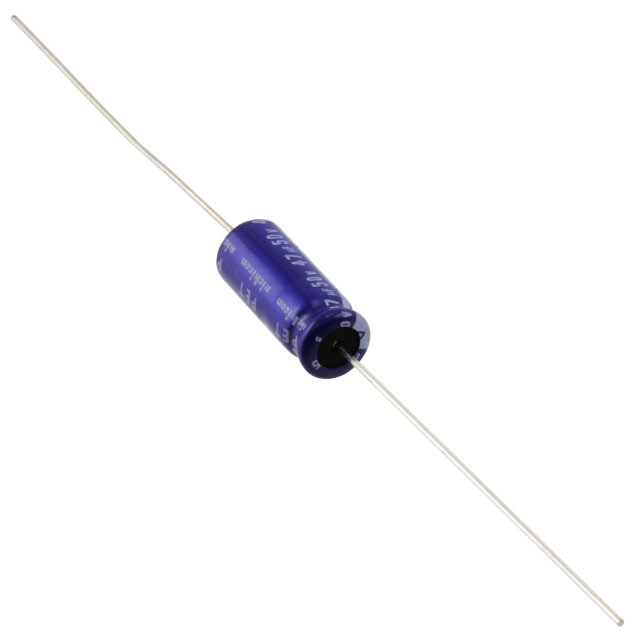

NICHICON  TVX1J330MAD  铝电解电容, VX系列, 33 µF, ± 20%, 63 V, 6.3 mm, 轴向引线

33µF 63V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C

得捷:
CAP ALUM 33UF 20% 63V AXIAL

e络盟:
NICHICON  TVX1J330MAD  铝电解电容, VX系列, 33 µF, ± 20%, 63 V, 6.3 mm, 轴向引线

艾睿:

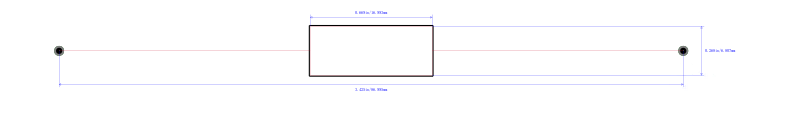

This electrolytic TVX1J330MAD aluminum capacitor from Nichicon has an anode consisting of pure aluminum foil and is used to filter lower frequencies. It can withstand a voltage of 63 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. It has a tolerance of 20%. Its leakage current is 4@1Min|3@2Min μA. This product is 16 mm long with a diameter of 6.3 mm. The TVX1J330MAD aluminum electrolytic capacitor has an axial termination style. Its capacitance value is 33uF. This part has a lead diameter of 0.6 mm.

安富利:
Cap Aluminum 33uF 63V 20% 6.3 X 16mm Axial 110mA 2000 hr 85°C

TME:
Capacitor: electrolytic; THT; 33uF; 63VDC; Ø6.3x16mm; ±20%; 120mA

Verical:
Cap Aluminum Lytic 33uF 63V 20% 6.3 X 16mm Axial 120mA 2000h 85C
