TEXAS INSTRUMENTS TMDSEMU560U 仿真器, XDS560, USB, BLACKHAWK
DSP，MCU series 仿真器
得捷:
BLACKHAWK XDS560 USB EMULATOR
贸泽:
仿真器/模拟器 XDS560 Class High Speed Emulators
e络盟:
TEXAS INSTRUMENTS TMDSEMU560U 仿真器, XDS560, USB, BLACKHAWK
艾睿:
TMS320DM643 DSP Emulator
安富利:
Black HAWK XDS560 JTAG USB Emulator
Newark:

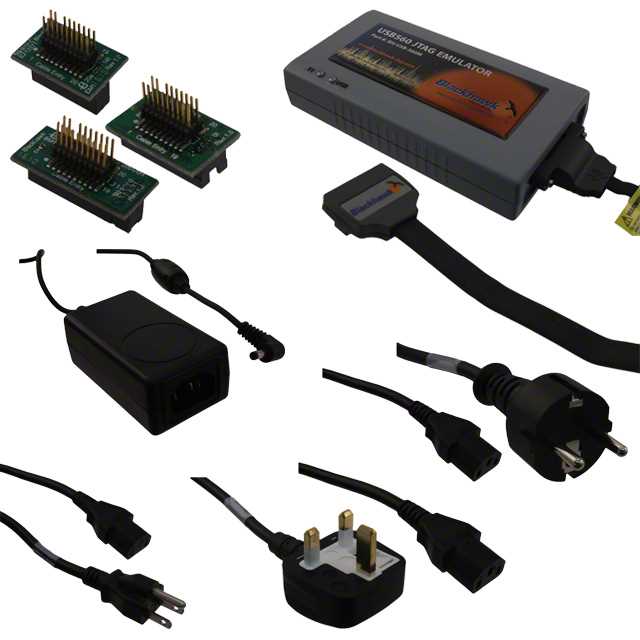

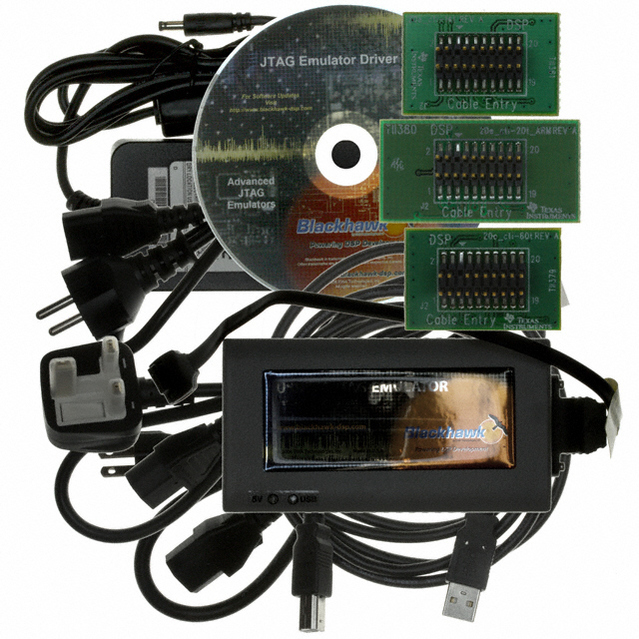

The TMDSEMU560U is a Blackhawk USB560 JTAG emulator of XDS560 class, next generation emulation controller with a high speed USB 2.0480Mbytes/s host interface. The USB560 is compatible with the XDS560 emulator features including, but not limited to, lightning speed code downloads and advanced event triggering capabilities to find and fix real time software problems. The USB560 uses 20 pin compact TI JTAG header connector and is also compatible with the Blackhawk XDS560 cable and pod assembly and Blackhawk XDS560 trace system. The USB560 pod is compact 3.1 x 5.8 x 1.1 inches, portable and backwards compatible to USB 1.1. The USB560 has additional features and benefits, including support for C2000 devices and compatibility with a remote Ethernet software add-on that allows LAN/WAN access to the emulator across an Ethernet network. The Blackhawk USB560 supports boundary scan definition language BSDL. BSDL is the standard modelling language for boundary scan devices.
