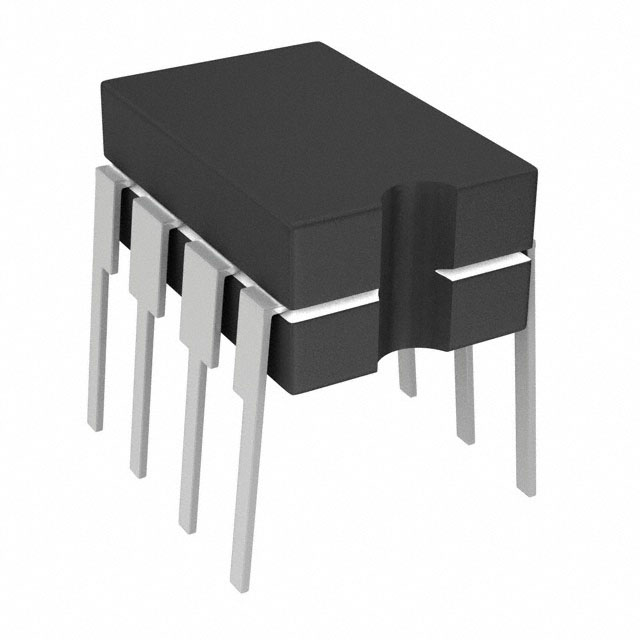

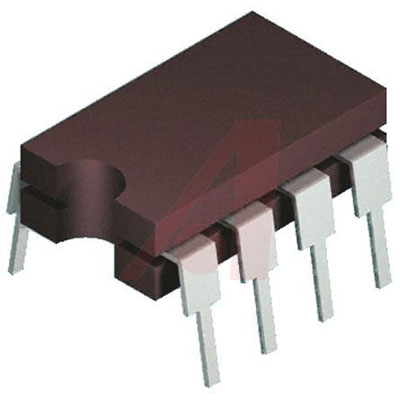

9A高速MOSFET驱动器 9A High-Speed MOSFET Drivers
GENERAL DESCRIPTION
The TC4421/4422 are high current buffer/drivers capable of driving large MOSFETs and IGBTs.
They are essentially immune to any form of upset except direct overvoltage or over-dissipation — they can not be latched under any conditions within their power and voltage ratings; they are not subject to damage or improper operation when up to 5V of ground bounce is present on their ground terminals; they can accept, without either damage or logic upset, more than 1A inductive current of
either polarity being forced back into their outputs. In addition, all terminals are fully protected against up to 4 kV of electrostatic discharge.
FEATURES
■ Tough CMOS™Construction
■ High Peak Output Current .................................. 9A
■ High Continuous Output Current ............... 2A Max
■ Fast Rise and Fall Times:
— 30 nsec with 4,700 pF Load
— 180 nsec with 47,000 pF Load
■ Short Internal Delays ............................ 30nsec Typ
■ Low Output Impedance ............................ 1.4W Typ
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TC4421MJA Microchip 微芯 | 当前型号 | 当前型号 |
TC4421CPA 微芯 | 类似代替 | TC4421MJA和TC4421CPA的区别 |
TC4422AVPA 微芯 | 类似代替 | TC4421MJA和TC4422AVPA的区别 |
TC4422EPA 微芯 | 类似代替 | TC4421MJA和TC4422EPA的区别 |
