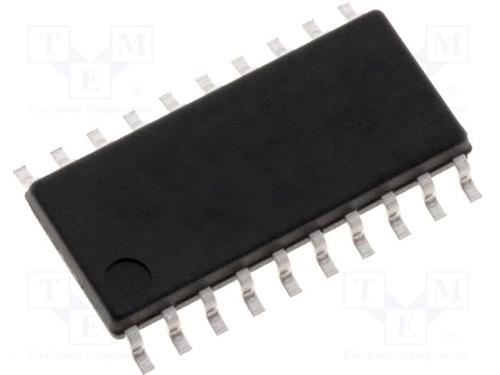

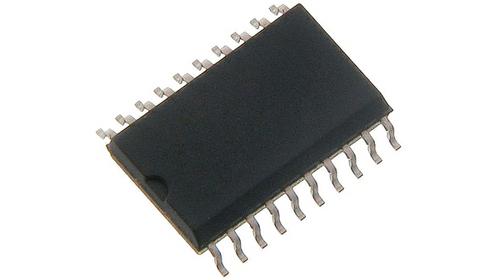

TRINAMIC TMC222-SI 芯片, 电机控制器 I2C接口
The is a combined micro-stepping stepper motor Motion Controller and Driver with RAM and OTP memory. The RAM or OTP memory is used to store motor parameters and configuration settings. This allows up to four-bit of micro stepping and a coil current of up to 800 mA. After initialization it performs all time critical tasks autonomously based on target positions and velocity parameters. Communications to a host takes place via a two wire serial interface. Together with an inexpensive microcontroller this forms a complete motion control system.
- .
- IIC Interface
- .
- Stepper supported motor
- .
- Trapezoidal velocity ramps
电源电压DC 8.00V min
工作电压 8VDC ~ 29VDC
输出接口数 4
输出电压 12.5 V
输出电流 800 mA
通道数 1
针脚数 20
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 3.3V ~ 5V
电源电压Max 29 V
电源电压Min 8 V
安装方式 Surface Mount
引脚数 20
封装 SOIC-20
封装 SOIC-20
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Each
制造应用 通用, 电机驱动与控制, Motor Drive & Control
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TMC222-SI Trinamic Motion Control | 当前型号 | 当前型号 |
TMC223-SI Trinamic Motion Control | 类似代替 | TMC222-SI和TMC223-SI的区别 |
