3.3 GHz到3.8 GHz的1 -W功率放大器 3.3-GHz To 3.8-GHz 1-W Power Amplifier
Noise and distortion a problem? Implement this power amplifier buffer amplifier from Texas Instruments, and never worry again! Its maximum power dissipation is 6500 mW. This RF amplifier chip has a minimum operating temperature of -40 °C and a maximum of 85 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This device uses one or two power supplies. It has a single channel per chip.
频率 3.3GHz ~ 3.8GHz
电源电压DC 7.00V max
供电电流 925 mA
通道数 1
耗散功率 6.5 W
输出功率 31 dBm
增益 30 dB
测试频率 3.3GHz ~ 3.8GHz
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 6500 mW
电源电压Max 7 V
安装方式 Surface Mount
引脚数 32

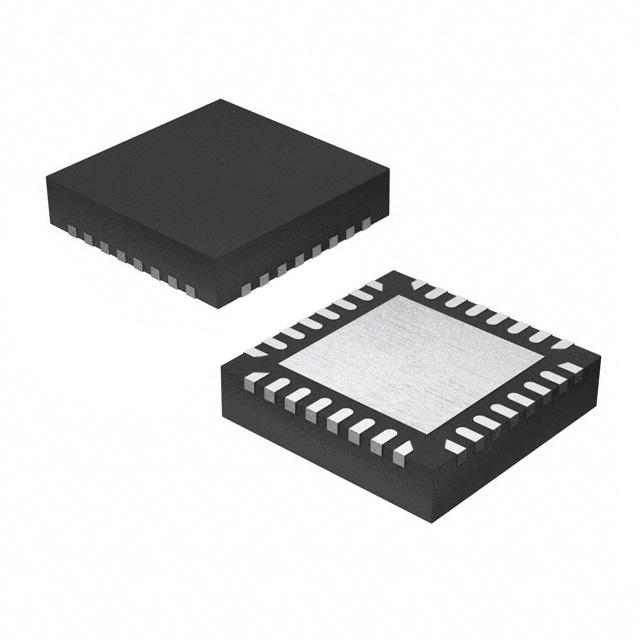

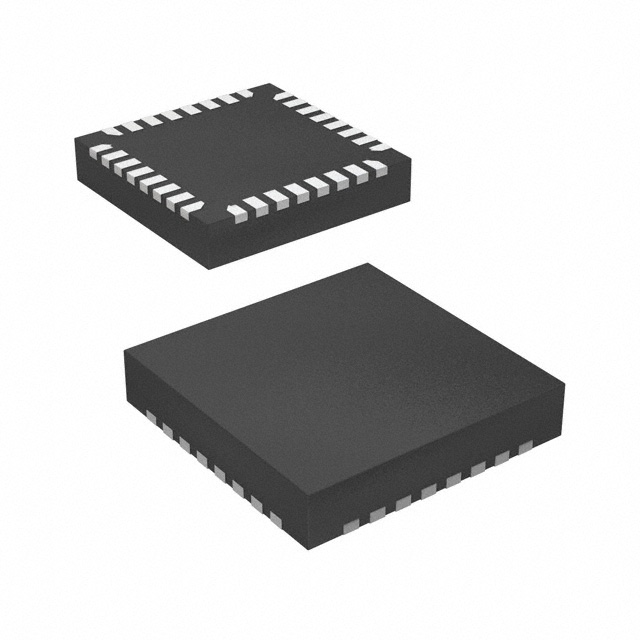

封装 VQFN-32
长度 5.00 mm
宽度 5.00 mm
封装 VQFN-32
工作温度 -40℃ ~ 85℃
产品生命周期 Obsolete
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TRF1223IRTMR TI 德州仪器 | 当前型号 | 当前型号 |
TRF1223IRTMRG3 德州仪器 | 完全替代 | TRF1223IRTMR和TRF1223IRTMRG3的区别 |
TRF1223IRTMT 德州仪器 | 类似代替 | TRF1223IRTMR和TRF1223IRTMT的区别 |
TRF1223IRTMTG3 德州仪器 | 类似代替 | TRF1223IRTMR和TRF1223IRTMTG3的区别 |
