2.1 GHz到2.7 GHz的1 -W功率放大器 2.1-GHz to 2.7-GHz 1-W Power Amplifier
Strengthen your RF signals by using this power amplifier buffer amplifier from Texas Instruments. Its maximum power dissipation is 5500 mW. This RF amplifier chip has a temperature range of -40 °C to 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device uses one or two power supplies. It has a single channel per chip.
频率 2.1GHz ~ 2.7GHz
电源电压DC 7.00 V, 7.00 V min
供电电流 700 mA
通道数 1
耗散功率 5.5 W
输出功率 31.5 dBm
增益 30 dB
测试频率 2.1GHz ~ 2.7GHz
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 5500 mW
电源电压Max 7.35 V
安装方式 Surface Mount
引脚数 32

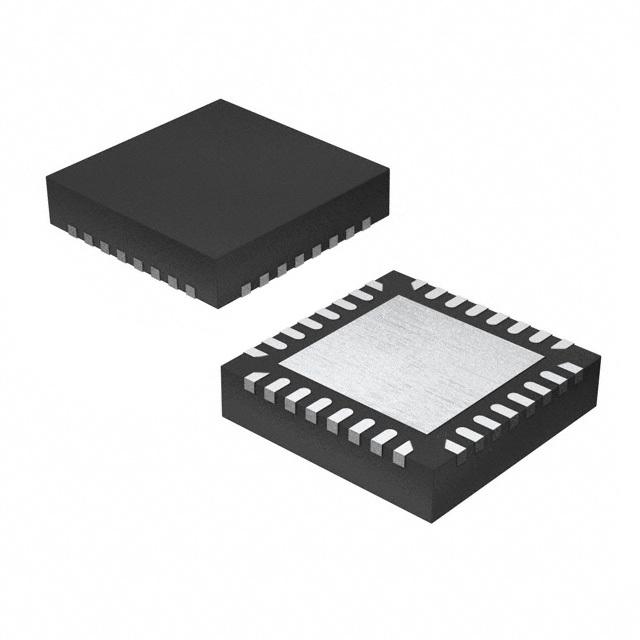

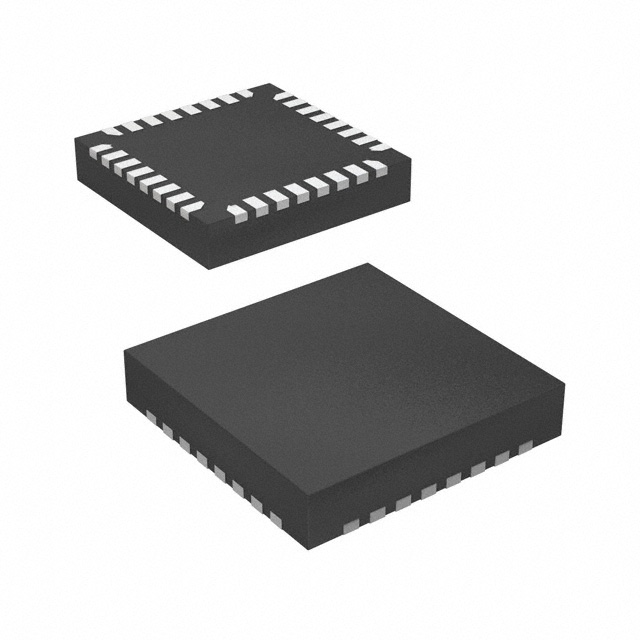

封装 VQFN-32
封装 VQFN-32
产品生命周期 Obsolete
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
