3.3 GHz到3.8 GHz的1 -W功率放大器 3.3-GHz To 3.8-GHz 1-W Power Amplifier
The power amplifier buffer amplifier from Texas Instruments works perfectly when it comes to amplifying RF signals. Its maximum power dissipation is 6500 mW. This RF amplifier chip has a temperature range of -40 °C to 85 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This device uses one or two power supplies. It has a single channel per chip.
频率 3.3GHz ~ 3.8GHz
电源电压DC 7.00V min
供电电流 1.3 A
耗散功率 6.5 W
输出功率 31 dBm
增益 30 dB
测试频率 3.3GHz ~ 3.8GHz
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 6500 mW
电源电压Max 5.25 V
安装方式 Surface Mount
引脚数 32

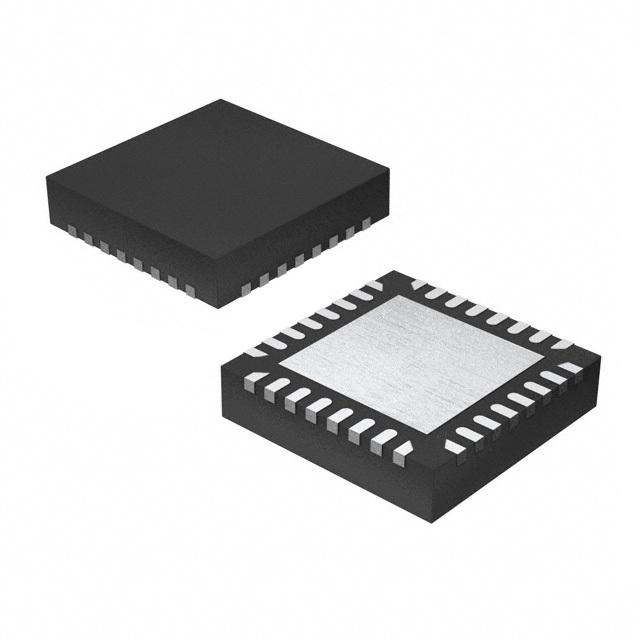

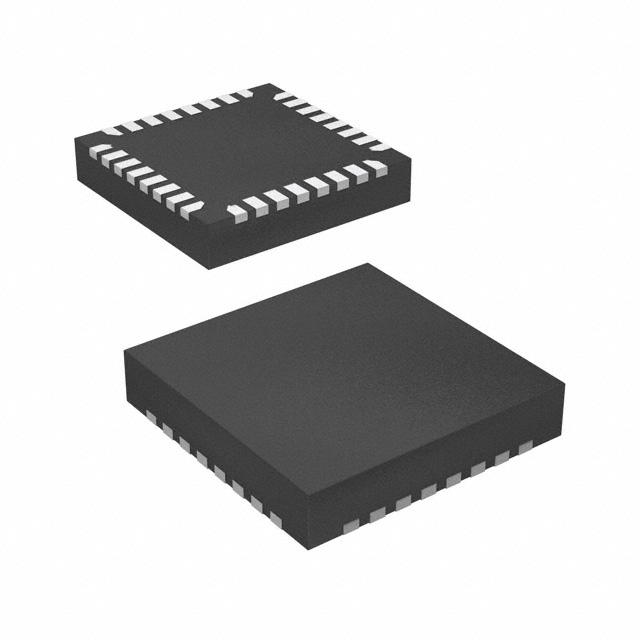

封装 VQFN-32
封装 VQFN-32
工作温度 -40℃ ~ 85℃
产品生命周期 Obsolete
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TRF1223IRTMT TI 德州仪器 | 当前型号 | 当前型号 |
TRF1223IRTMR 德州仪器 | 类似代替 | TRF1223IRTMT和TRF1223IRTMR的区别 |
TRF1223IRTMRG3 德州仪器 | 类似代替 | TRF1223IRTMT和TRF1223IRTMRG3的区别 |
