VISHAY TNPW120610K0BEEA 薄膜电阻, 10KΩ, 250MW, 0.1%, 整卷

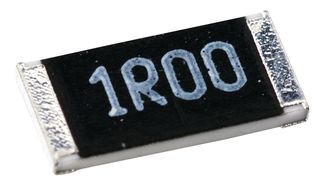

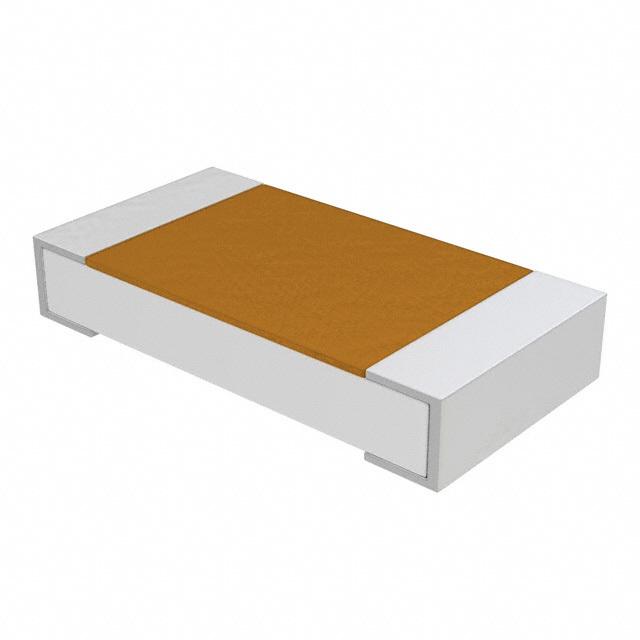

The is a surface-mount Flat Chip Resistor with high stability thin film element. The TNPW precision thin film flat chip resistor is the perfect choice for most fields of modern electronics where highest reliability and stability is of major concern. It offers excellent overall stability at different environmental conditions ±0.05%.
- .
- Superior moisture resistivity 85°C, 85% RH
- .
- Excellent overall stability at different environmental conditions
- .
- AEC-Q200 qualified
容差 ±0.1 %
额定功率 250 mW
电阻 10 kΩ
阻值偏差 ±0.1 %
额定电压 25 V
安装方式 Surface Mount
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 0.55 mm
封装公制 3216
封装 1206
工作温度 -55℃ ~ 125℃
温度系数 ±25 ppm/℃
包装方式 Tape & Reel TR
制造应用 Medical, 测试与测量, Automotive, 医用, 车用, 工业, Industrial, Test & Measurement
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TNPW120610K0BEEA Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
CRT1206-BY-1002ELF 伯恩斯 | 功能相似 | TNPW120610K0BEEA和CRT1206-BY-1002ELF的区别 |
ERA8AEB103V 松下 | 功能相似 | TNPW120610K0BEEA和ERA8AEB103V的区别 |
