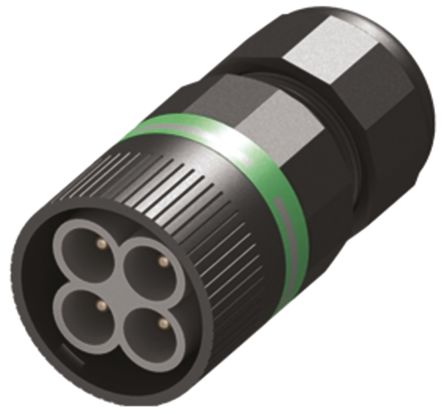

HYLEC THB.387.A4A 圆形连接器, TH387系列, 插头, 4 触点, 公, 螺丝, 电缆安装
The is a 4-way screw terminal Teeplug, made of PA66. It features 7 to 12mm cable diameter and 4mm² maximum conductor size. The keyway coded components for ease installation.
触点数 4
极性 Male
触点电镀 Nickel
额定电流 17.5 A
易燃性等级 UL 94 V-0
工作温度Max 125 ℃
工作温度Min -20 ℃
安装方式 Screw
触点材质 Brass
RoHS标准 RoHS Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
数据手册
