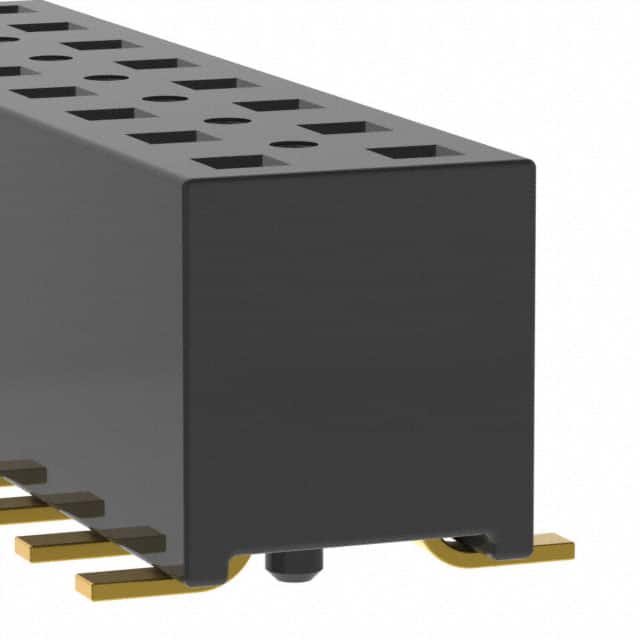

TLE-110-01-G-DV-A

SAMTEC  TLE-110-01-G-DV-A  板至板连接, TLE系列, 20 触点, 插座, 2 mm, 表面安装　, 2 排

20 位置 插座，通透式 表面贴装型

欧时:
2.00mm Tiger Beam TLE SMT socket, 20P

得捷:
CONN RCPT 20POS 0.079 GOLD SMD

e络盟:
板至板连接, 2 mm, 20 触点, 插座, TLE系列, 表面安装　, 2 排

艾睿:

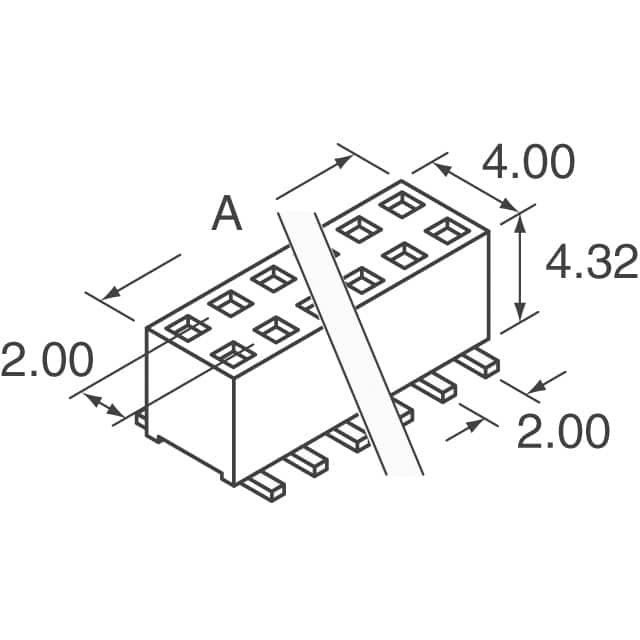

Protect your printed circuit boards from accidental damages with Samtec&s;s socket strip TLE-110-01-G-DV-A header connector. This SKT connector&s;s 20 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. It has a socket type gender. Its pitch is 2 mm. It has a straight body orientation. This device has a maximum current rating of 3.2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. TLE-110-01-G-DV-A is housed in black liquid crystal polymer. This product is 20 mm long, 4.5 mm tall and 4 mm deep.

安富利:
Conn Socket Strip SKT 20 POS 2mm Solder ST SMD Tube

Newark:
# SAMTEC  TLE-110-01-G-DV-A  Board-To-Board Connector, TLE Series, Surface Mount, Receptacle, 20, 2 mm, Gold Plated Contacts
