单节锂离子电池 - 和电源管理IC SINGLE-CELL Li-ION BATTERY- AND POWER-MANAGEMENT IC
The TPS65800 provides an easy to use, fully integrated solution for handheld devices, integrating charge management, multiple regulated power supplies, system management and display functions, in a small thermally-enhanced 8x8-mm package. The high level of integration enables typical board area space savings of 70% when compared to equivalent discrete solutions, while implementing a high-performance and flexible solution, portable across multiple platforms. If required, an external host may control the TPS65800 via I2C interface, with access to all integrated systems. The I2C enables setting output voltages, current thresholds, and operation modes. Internal registers have a complete set of status information, enabling easy diagnostics, and host-controlled handling of fault conditions. The TPS65800 can operate in stand-alone mode, with no external host control, if the internal power-up defaults are compatible with the system requirements
电源电压DC 18.0V max
输出电压 4.6 V
输出电流 150 mA
耗散功率 3220 mW
调节输出数 12
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 3220 mW
电源电压 4.35V ~ 16.5V
安装方式 Surface Mount

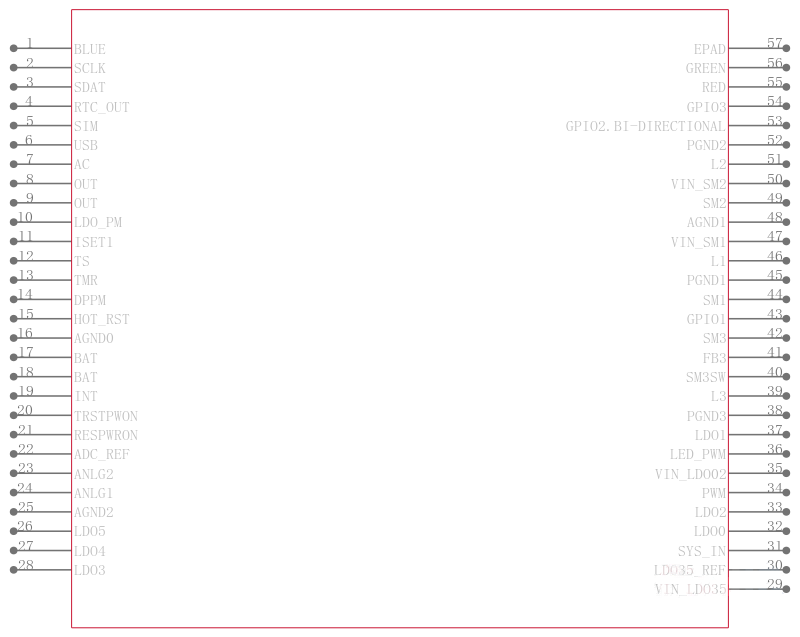

引脚数 56

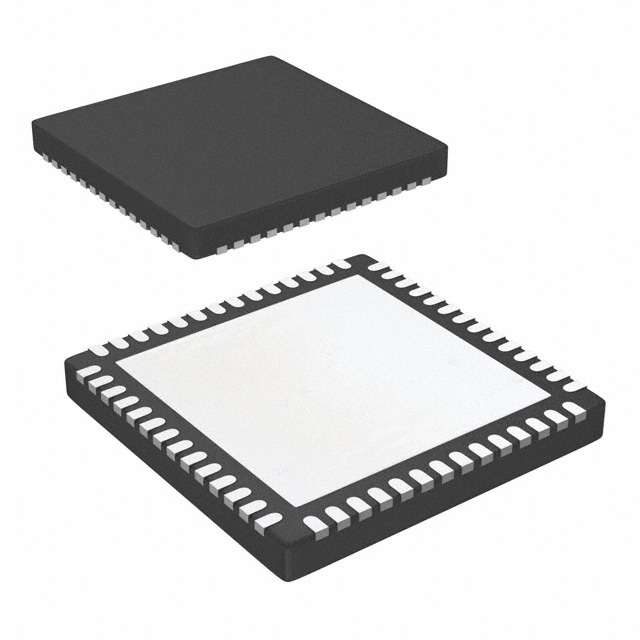

封装 VFQFN-56
长度 8 mm
宽度 8 mm
高度 0.9 mm
封装 VFQFN-56
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
