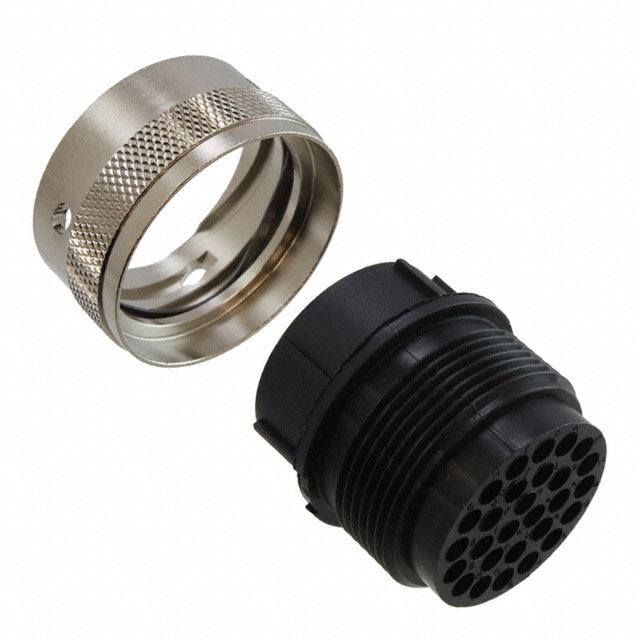

ITT Cannon Trident 连接器系列的环锁圆形连接器。 Trident 连接器系列具有坚固的金属卡口连接系统，采用多种引脚配置，适用于插座和插口。 环锁、电缆夹连接器和底壳电缆夹均可作为单独元件提供。尺寸 mm --- **适合电缆外壳** | | | | **线路数目** | **外包直径** | **整体长度（标准，包括 护罩）** | **整体长度（屏蔽** | **最大缆线直径** 4 | 21.6 | 57 | 72 | 8.7 7 | 34.3 | 73.5 | - | 19.9 8 | 24.8 | 57 | 74 | 12.8 12 | 28.0 | 63 | 85 | 13.8 19 | 31.2 | 63 | 85 | 17.0 23 | 34.3 | 67 | 88 | 19.9 28 | 37.5 | 74 | 101 | 21.0 35 | 40.7 | 79 | 117 | 23.0 48 | 43.9 | 84 | 123 | 27.0 ### QM 系列塑料圆形这些外壳随附配有集成电缆线夹的旋紧外壳（有三种尺寸，以适合不同直径电缆）。 二个外壳通过卡口作用金属环来定位和锁定。带引脚插件的面板安装外壳只能插接带插座插件的电缆安装外壳，带插座插件的面板安装外壳只能插接带引脚插件的电缆安装外壳。外壳材料 | 黑色 UL94V-0 级尼龙 ---|--- 工作温度 | -25 → +105°C 测试电势 | 1000 V 交流有效值 绝缘电阻 | 500V 直流条件下为 5000 MΩ
The Trident Ringlock series Connector System is a versatile range of connectors based on a standard contact design. These contacts are fully interchangeable throughout the Trident series. Ring lock is a range of robust circular connectors for industrial applications. It uses a metal bayonet coupling system for quick and reliable connections and thermoplastic bodies. The connectors are available in several sizes ranging from 4 to 48 circuits for signals of up to 16A or coax. With the addition of a cable clamp, the connectors can be water sealed to meet IP65.
