TMT 15115C概述
TRACOPOWER TMT 15115C AC-DC Enclosed Power Supply, Medical, Fixed, 1Outputs, 85V, 264V, 15W, 15V

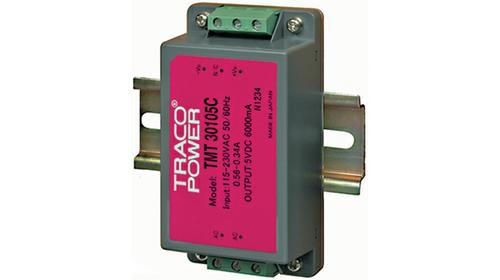

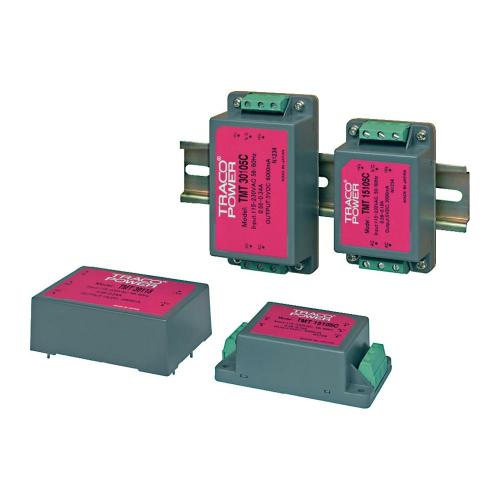

The TMT series AC/DC Power Supply in compact fully encapsulated module. It features easy installation with screw terminals and optional DIN-rail mounting adaptor. This AC/DC module offers an interesting power supply solution for many space critical applications in industrial electronic equipment.
- .
- Ultracompact, fully encapsulated plastic case
- .
- Protection class ll
- .
- Short-circuit and overload protection
TMT 15115C中文资料参数规格
技术参数
电源电压DC 264 V
额定功率 15.0 W
输出接口数 1
输出电压 15 V
输出电流 1.00 A
输入电压AC Max 264 v
输入电压AC Min 85 v
输出电流Max 1 A
输出功率Max 15 W
输入电压 85V ~ 264V
封装参数
安装方式 Chassis
外形尺寸
长度 77.0 mm
宽度 45.0 mm
高度 26.4 mm
其他
产品生命周期 Not For New Designs
制造应用 Industrial, Commercial
符合标准
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
在线购买TMT 15115C
型号： TMT 15115C
制造商：
Traco Electronic
描述：TRACOPOWER TMT 15115C AC-DC Enclosed Power Supply, Medical, Fixed, 1Outputs, 85V, 264V, 15W, 15V
