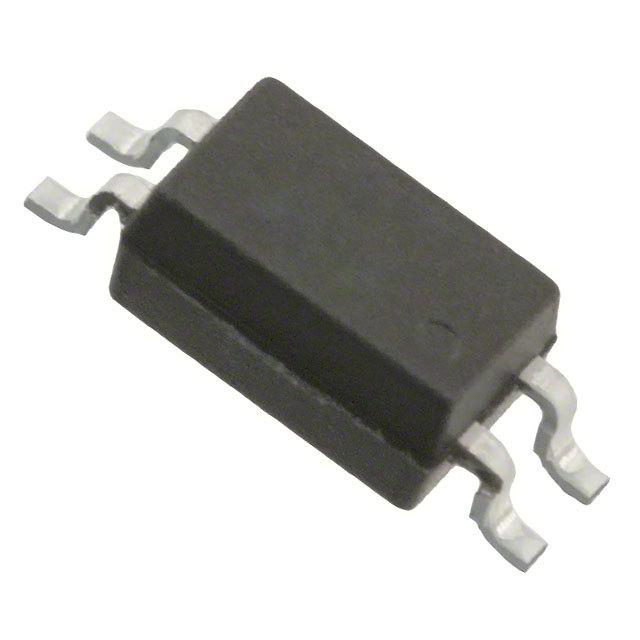

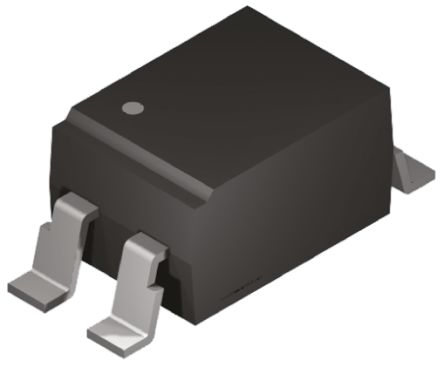

TCMT 系列,Vishay Semiconductor薄型光耦合器,带光电晶体管输出,通常用于可编程逻辑控制器。 ### 光耦合器,Vishay Semiconductor
The is a 1-channel 4-pin Phototransistor Output Optocoupler consists of a phototransistor optically coupled to a gallium arsenide infrared-emitting diode. The elements are mounted on one lead-frame providing a fixed distance between input and output for highest safety requirements. It is suitable for programmable logic controllers, modems, answering machines and general applications.
额定电压DC 70.0 V
上升/下降时间 5.5µs, 7µs
输出电压 70.0 V
通道数 1
针脚数 4
正向电压 1.35 V
输入电流 50 mA
耗散功率 250 mW
上升时间 3 µs
隔离电压 3.75 kV
正向电流 60 mA
输出电压Max 70 V
输入电流Min 60 mA
正向电压Max 1.6 V
正向电流Max 60 mA
下降时间 4.7 µs
工作温度Max 100 ℃
工作温度Min -40 ℃
耗散功率Max 250 mW
安装方式 Surface Mount
引脚数 4
封装 SOP-4
高度 1.9 mm
封装 SOP-4
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Automation & Process Control, Communications & Networking, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TCMT1102 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
TCMT1100 威世 | 完全替代 | TCMT1102和TCMT1100的区别 |
TCMT1103 威世 | 完全替代 | TCMT1102和TCMT1103的区别 |
TCLT1007 威世 | 完全替代 | TCMT1102和TCLT1007的区别 |
