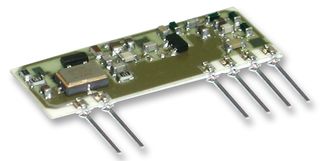

TX MID 5V

TX MID 5V图片1
TX MID 5V图片2
TX MID 5V图片3
TX MID 5V图片4
TX MID 5V概述

TX MID 5V is a SAW Transmitter module with external antenna for utilization with ON-OFF modulation of a RF carrier with digital data. Buffer stage for enhanced power and low harmonics on output allows high immunity against dis adjustments.

is a SAW Transmitter module with external antenna for utilization with ON-OFF modulation of a RF carrier with digital data. Buffer stage for enhanced power and low harmonics on output allows high immunity against dis adjustments.

.
Operating frequency is 433.92MHz
.
Supply voltage is 3.5 to 5.5V
.
25.4 x 12.43 x 2.5mm
.
RF output with a characteristic impedance of 50ohm
.
AM OOK transmitter module
.
Buffer stage for enhanced power, low harmonics on o/p allows high immunity against dis adjustments
.
No antenna installed. Whip antenna or external 50R antenna mountable
TX MID 5V中文资料参数规格
技术参数

频率 433.92 MHz

电源电压DC 3.50V min

供电电流 5.7 mA

电源电压 3.5V ~ 5.5V

电源电压Max 5.5 V

电源电压Min 3.5 V

物理参数

工作温度 -20℃ ~ 80℃

符合标准

RoHS标准 RoHS Compliant

REACH SVHC标准 No SVHC

数据手册

在线购买TX MID 5V
型号: TX MID 5V
制造商: Aurel
描述:TX MID 5V is a SAW Transmitter module with external antenna for utilization with ON-OFF modulation of a RF carrier with digital data. Buffer stage for enhanced power and low harmonics on output allows high immunity against dis adjustments.
