TCDT1100G

光电耦合器，光电晶体管输出 Optocoupler, Phototransistor Output

DESCRIPTION

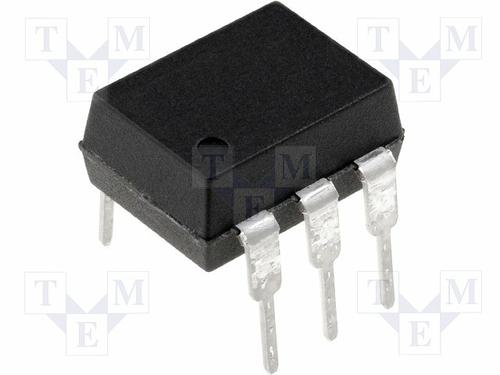

The TCDT1100/ series consists of a phototransistor optically coupled to a gallium arsenide infrared-emitting diode in a 6-pin plastic dual inline package. The base of the phototransistor is not connected providing noise immunity. The elements are mounted on one leadframe which providing a fixed distance between input and output for highest safety requirements.

FEATURES

• Isolation test voltage 5300 VRMS

• Extra low coupling capacity - typical 0.2 pF

• High common mode rejection

• No base terminal connection for improved noise immunity

• CTR offered in 4 groups

• Thickness though insulation ≥0.75 mm

• Creepage current resistance according to VDE 0303/ IEC 60112 comparative tracking index: CTI ≥275

• Lead Pb-free component

• Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
