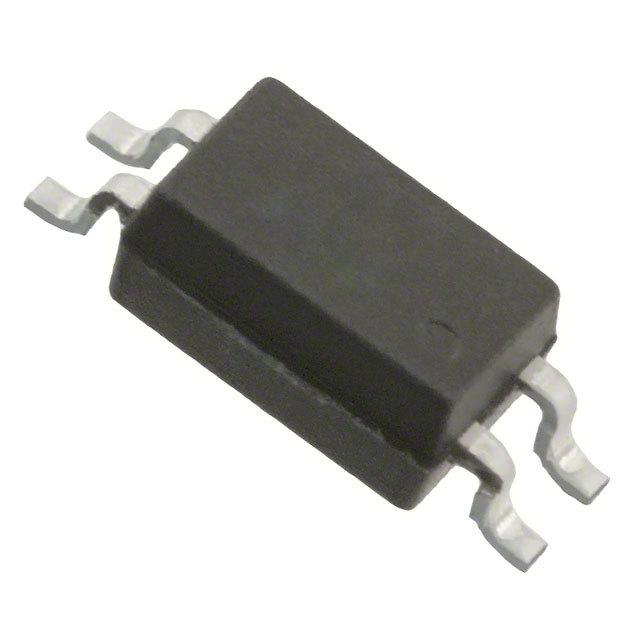

TCMT1110

光电耦合器，光电晶体管输出，单路，半节距微型扁平封装 Optocoupler, Phototransistor Output, Single Channel, Half Pitch Mini-Flat Package

DESCRIPTION

The TCMT111X series consist of a phototransistor optically coupled to a gallium arsenide infrared-emitting diode in a 4 pin package. The elements are mounted onone leadframe providing a fixed distance between input and output for highest safety requirements.

FEATURES

• Low profile package half pitch

• AC isolation test voltage 3750 VRMS

• Low coupling capacitance of typical 0.3 pF

• Current transfer ratio CTR selected into groups

• Low temperature coefficient of CTR

• Wide ambient temperature range
