TMM-110-01-G-S

SAMTEC  TMM-110-01-G-S  板至板连接, 单路, TMM系列, 10 触点, 针座, 2 mm, 通孔安装, 1 排

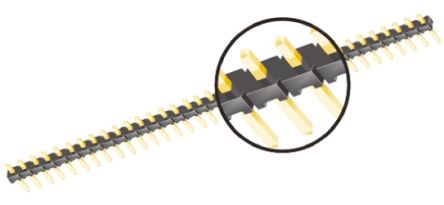

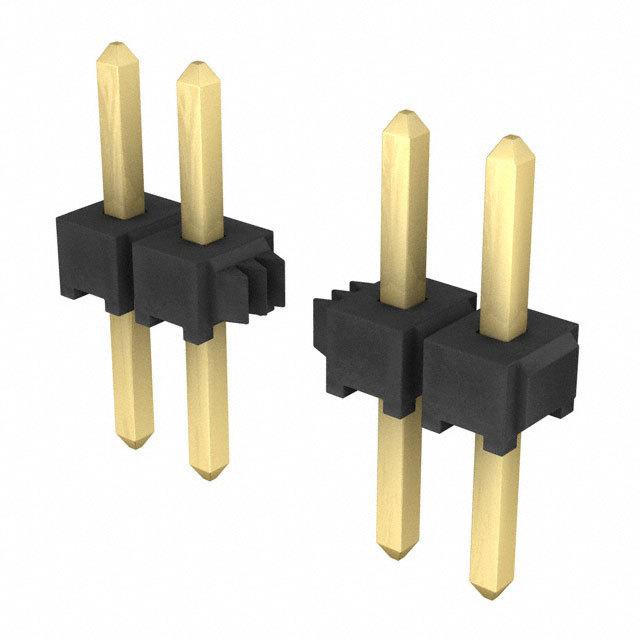

TMM Series Low Profile Through Hole Pin Headers

These TMM Series of 2 mm pitch, Low Profile 2.77 mm, Through Hole Headers from have 0.5 μm Gold plated 3.2 mm long 0.5mm square posts with 0.075 μm Gold plated 3.5 mm long tails. This range of TMM Series of 2 mm pitch, Low Profile 2.77 mm, Through Hole Headers are available in single and dual row configurations with a 2 mm pitch between rows.

Operating temperature: -55°C to +125°C

Insulator Material: Black LCP

### 注

Mates with SQT Series Sockets, see stock number 767-9568 typical.

Mates with SQW Series Sockets, see stock number 767-9650 typical.

Mates with TLE Series Sockets, see stock number 765-6079 typical.

Mates with SMM Series Sockets, see stock number 767-9470 typical.

Mates with MMS Series Sockets, see stock number 481-4796 typical.
