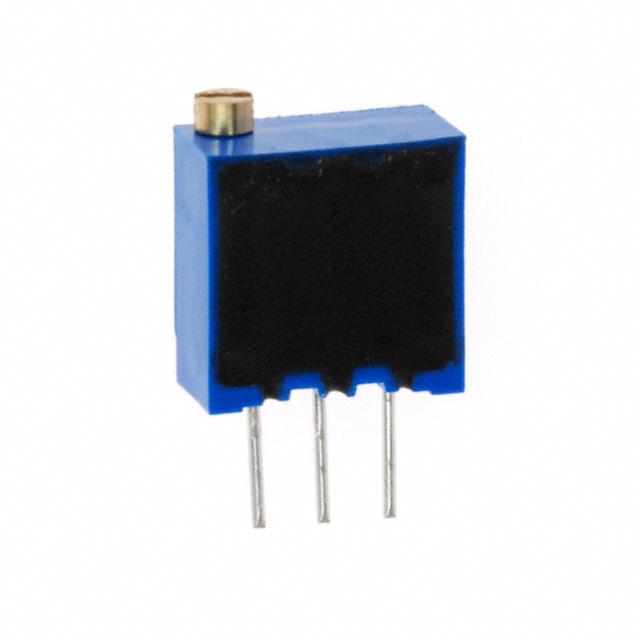

VISHAY T93YB203KT20 微调器,22转 20K
The is a 20kR 500mW 23-turn through-hole mounting industrial grade Trimmer for answering PC board mounting requirements. Excellent operational stability is provided by the use of a cermet element. The 3/8-inch square YB-style multi-turn cermet trimmer has pure Sn terminals, ±10% resistance tolerance and ±100ppm/°C temperature coefficient.
- .
- Clutch action end stop torque
- .
- IP67 Protection rating
- .
- -55 to 125°C Temperature range
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
T93YB203KT20 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
3296Y-1-203LF 伯恩斯 | 功能相似 | T93YB203KT20和3296Y-1-203LF的区别 |
3299Y-1-203LF 伯恩斯 | 功能相似 | T93YB203KT20和3299Y-1-203LF的区别 |
