T93YB103KT20

VISHAY  T93YB103KT20  微调器,22转 10K

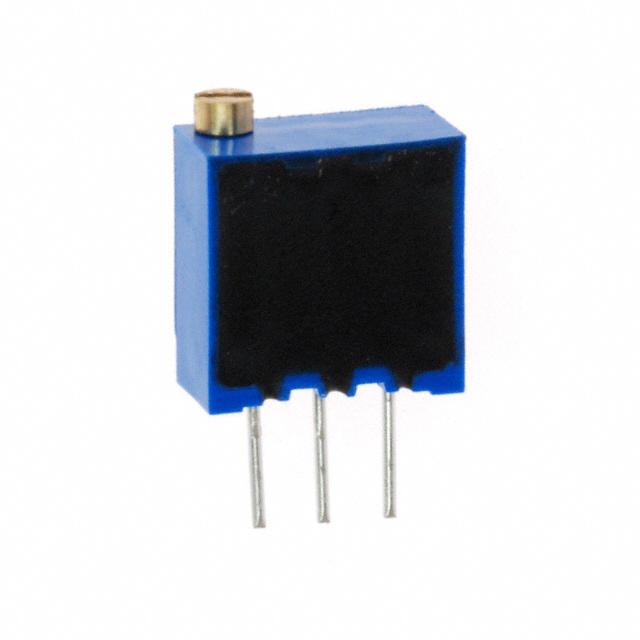

The is a 3/8-inch Square Multi-turn Cermet Trimmer with excellent operational stability is provided by the use of a cermet element. Power rating of 0.5W and temperature coefficient of ±100ppm/°C. The T93 is a small size trimmer 3/8 x 3/8 x 3/16-inch answering PC board mounting requirements. Five versions are available which differ by the position of the control screw in relation to the PC board plane and by the spacing of the terminals.

.

Industrial grade

.

21 turns ±2 Electrical travel

.

23 turns ±5 Mechanical travel

.

1000V Dielectric withstanding voltage

.

1000MR Insulation resistance

.

IP67 Protection rating fully sealed
