TRACOPOWER TES 2N-1213 直流/直流转换器 隔离式板载, 低型, 表面安装DIP, 固定, 表面安装设备, 2 W, 15 V, 135 mA
The is a high performance 2W DC/DC Converter Module featuring wide 2:1 input voltage ranges, 9 to 18VDC input voltage range and 15VDC output voltage. A high efficiency allows an operating temperature range of -40 to 85°C. A built-in EMI input filter complies with EN 55022, class-A. Typical applications for these converters are battery operated equipment and many applications where isolated, tightly regulated voltages are required.
- .
- Short-circuit protection
- .
- Bears washing process
- .
- 80% Typical efficiency
- .
- 12VDC Nominal input voltage
电源电压DC 12.0 V
额定功率 2 W
输出接口数 1
输入电压DC 9.00V ~ 18.0V
输出电压 15 V
输出电流 135 mA
隔离电压 1.5 kV
输入电压Max 18 V
输入电压Min 9 V
输入电压DC Max 18 V
输入电压DC Min 9 v
输出电流Max 135 mA
输出功率Max 2 W
工作温度Max 71 ℃
输入电压 9V ~ 18V
安装方式 Surface Mount
封装 SMD

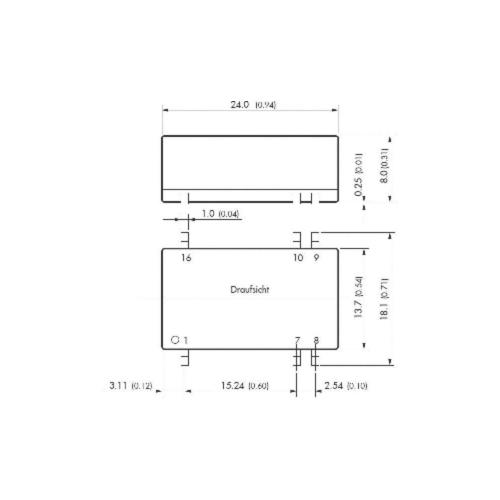

宽度 13.7 mm
高度 8 mm
封装 SMD
重量 5.10 g
包装方式 Tube
制造应用 Consumer Electronics, 传感与仪器, Communications & Networking, 通信与网络, 消费电子产品, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
