Processor Supervisor 4.12V 5V 3Pin SOT-23 T/R
General Description
The TC1272/TC1273/TC1274 are cost-effective system supervisor circuits designed to monitor VCC in digital systems and provide a reset signal to the host processor when necessary. No external components are required.
Features
• Precision VCCMonitor for 5.0V Systems
• 100 msec Minimum RESET, RESET Output Duration
• Output Valid to VCC= 1.2V
• VCC Transient Immunity
• Small 3-Pin SOT-23B Package
• No External Components
Applications
• Computers
• Embedded Systems
• Battery-Powered Equipment
• Critical µP Power Supply Monitoring
电源电压DC 5.50V max
输出电流 20 mA
耗散功率 230 mW
阈值电压 4.12 V
复位电压Min 4 V
复位电压Max 4.24 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 230 mW
电源电压Max 5.5 V
电源电压Min 1.2 V
安装方式 Surface Mount
引脚数 3

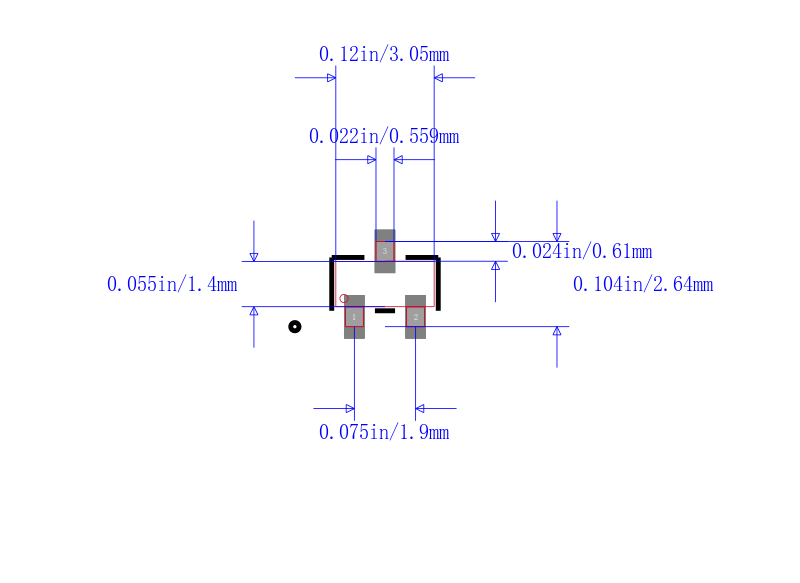

封装 SOT-23-3
长度 2.9 mm
宽度 1.3 mm
高度 0.95 mm
封装 SOT-23-3
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
