T63YB102KT20

VISHAY  T63YB102KT20  微调器,15转 1K

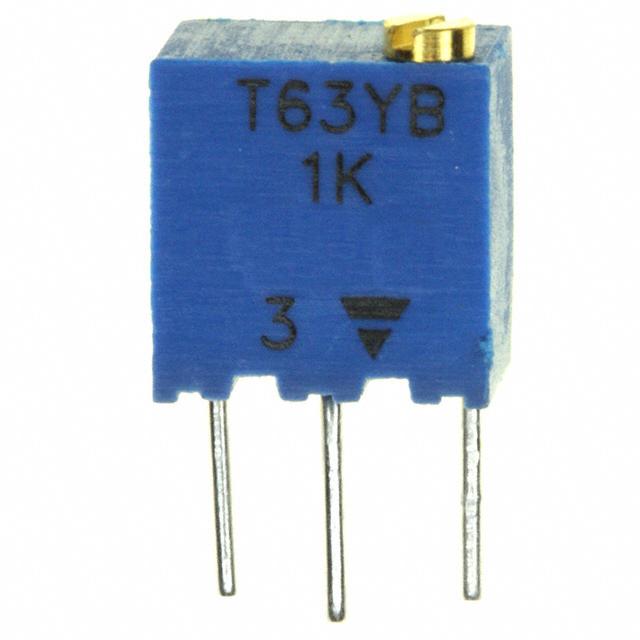

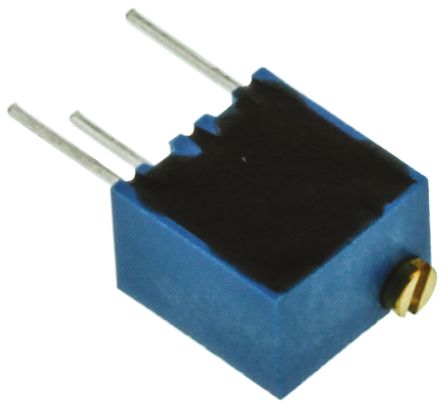

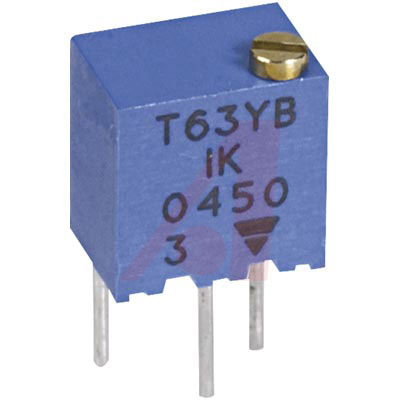

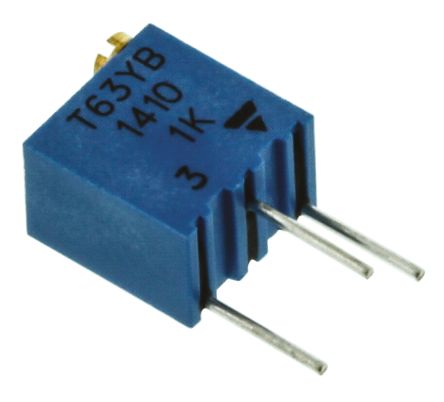

Multi-Turn Sealed Container Cermet Trimmer

Due to their square shape and small size 6.8 × 6.8 × 5 mm, the multiturn trimmers of the T63 series are ideally suited for PCB use, enabling high density board mounting with reduced space requirement between cards. Four versions are available differing by the top or side position of the adjustment screw and by PC pins configuration. The use of cermet for the resistive track ensures an excellent stability of nominal specifications throughout life.

** Features**

* 0.25 Watt at 85°C

* Industrial Grade

* CECC 41 100

* MIL-R-22097

* Multiturn Operation

* A Low Contact Resistance Variation

* Tight Tolerancing

* Low End Contact Resistance
