The TPS51620 is a selectable dual or single-phase, fully compliant IMVP6+ step down controller with integrated gate drivers. Advanced control features such as D-CAP+ architecture and OSR overshoot reduction provide fast transient response, lowest output capacitance and the high efficiency. The TPS51620 also supports single phase operation for light loads. The full complement of IMVP6+ I/O is integrated into the TPS51620. A logic signal is provided to control the number of active phases; transitioning into and out-of-dual-phase mode is exceptionally smooth. Adjustable control of VCORE slew rate and voltage positioning round out the IMVP6+ features. In addition, the TPS51620 includes two high-current MOSFET gate drivers to drive high and low side N-channel MOSFETs with exceptionally high speed and low switching loss The TPS51620 is packaged in a space saving, thermally enhanced 40-pin QFN and is rated to operate from 10°C to 100°C.
This device is designed specifically to power IMVP Mobile Processors under a strict disclosure agreement with Intel. The end user must have a current Agreement in place with Intel. For more information please contact IMVP@list.ti.com.
电源电压DC 3.00V min
输出接口数 1
输出电压 0.3V ~ 1.5V
静态电流 2.50 mA
调节输出数 1
开关频率 500 kHz
过温保护 Yes
拓扑结构 Buck
最大占空比 50 %
工作温度Max 100 ℃
工作温度Min 10 ℃
电源电压 3V ~ 28V
输入电压 3V ~ 28V
安装方式 Surface Mount
引脚数 40

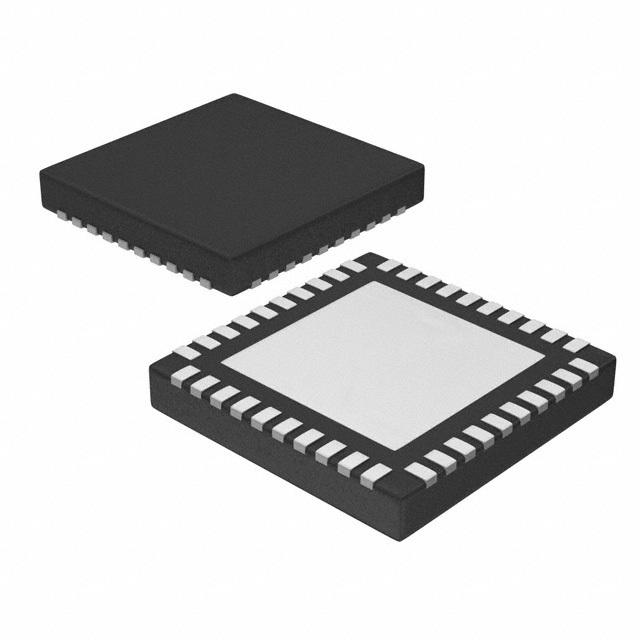

封装 VQFN-40
封装 VQFN-40
工作温度 -10℃ ~ 100℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS51620RHAR TI 德州仪器 | 当前型号 | 当前型号 |
TPS51620RHAT 德州仪器 | 完全替代 | TPS51620RHAR和TPS51620RHAT的区别 |
