TA5MX

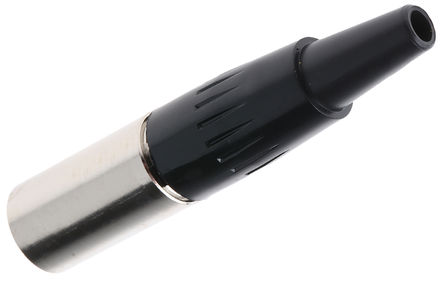

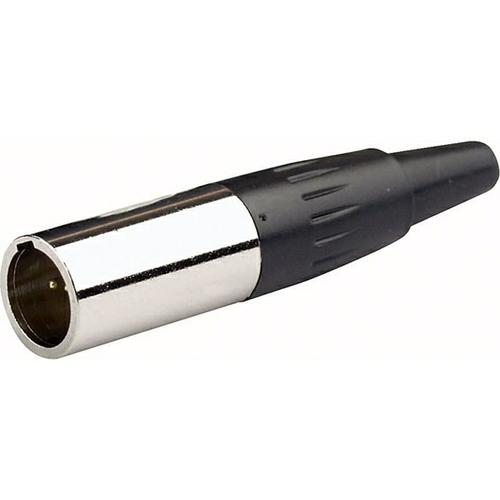

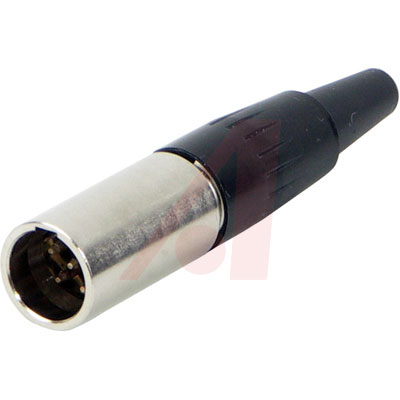

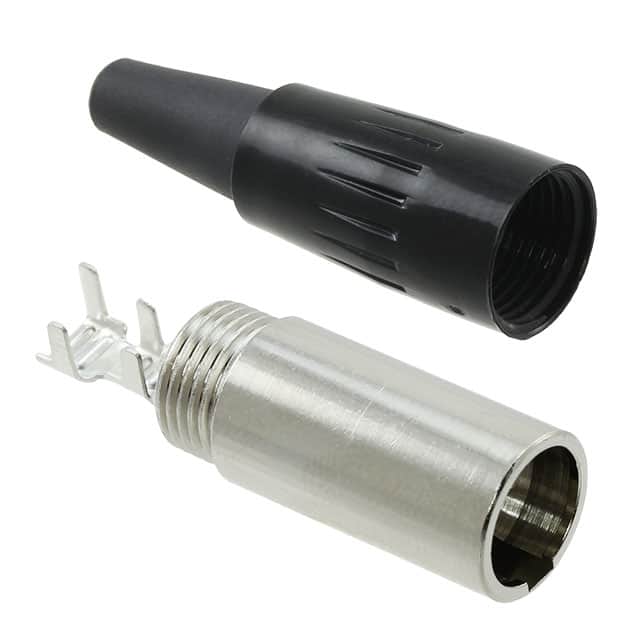

SWITCHCRAFT  TA5MX  音频连接器, XLR, 插头, 5 触点, 电缆安装, 金属主体, 镀银触芯, TA Series Tini Q-G

微型 Tini Q-G 电缆

微型音频连接器带极化正向锁定作用。 精确加工镀镍黄铜体和带键位连接器部件，以供快速、简便装配 应用包括与音频设备的微型连接 小型连接器更适合于便携式音频设备和工具。

欧时:
Switchcraft Tini QG 系列 5路 直向 电缆安装 插头 TA5MX, 4A额定电流

得捷:
CONN RCPT MALE MINI XLR 5P SLDR

贸泽:
XLR 连接器 5P PLUG MALE

e络盟:
XLR连接器, 5 触点, 插头, 电缆安装, 镀银触芯, 金属主体, TA Series Tini Q-G

艾睿:
The mini xlr connector TA5MX audio and video connector from Switchcraft allows you to operate video and sound in your design. This M connector&s;s 5 contacts that are made out of copper alloy and plated with silver. It has a maximum voltage rating of 125 VAC. It has a male type gender. This connector has a single port. It has a straight body orientation. TA5MX is housed in copper alloy. This device has a maximum current rating of 4 A. Its 5 terminals use the solder termination method. This product is 51.4 mm long with a diameter of 10.5 mm. This cable has an operating temperature range of -55 °C to 85 °C.

Allied Electronics:
DIN Plug; Plug; 5; Male; 125; 5 A; 510000 Megohms Min. @ 500 VDC Initial

Jameco:
Connector Mini XLR Connector Male 5 Position Solder Straight Cable Mount 5 Terminal 1 Port

Verical:
Conn Mini XLR Connector M 5 POS Solder ST Cable Mount 5 Terminal 1 Port

Newark:
# SWITCHCRAFT  TA5MX  XLR Audio Connector, 5 Contacts, Plug, Cable Mount, Tin Plated Contacts, Metal Body

MASTER:
Conn Mini XLR Connector M 5 POS Solder ST Cable Mount 5 Terminal 1 Port

Electro Sonic:
Conn Mini XLR Connector M 5 POS Solder ST Cable Mount 5 Terminal 1 Port
