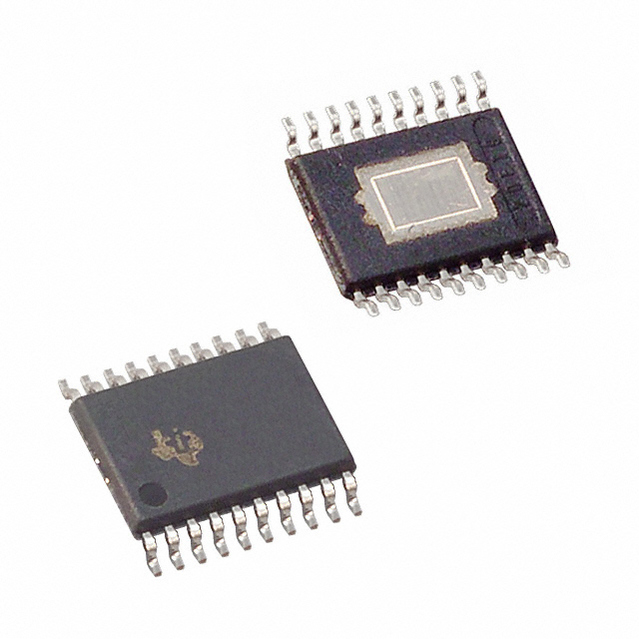

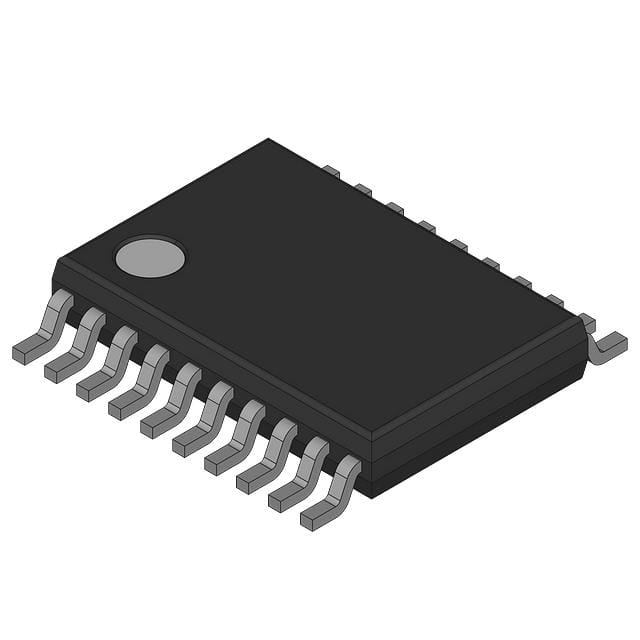

TPS75125MPWPREP

快速瞬态响应15 -A低压差具有电源状态良好稳压器 FAST TRANSIENT RESPONSE 15-A LOW DROPOUT VOLTAGE REGULATOR WITH POWER GOOD

Linear Voltage Regulator IC 1 Output 1.5A 20-HTSSOP

立创商城:
TPS75125MPWPREP

德州仪器TI:
Enhanced product, fast-transient response 1.5-A LDO regulator with power good

得捷:
IC REG LINEAR 2.5V 1.5A 20HTSSOP

艾睿:
Never worry about components not turning off and on due to lack of voltage with this LDO TPS75125MPWPREP linear regulator from Texas Instruments. This device has a maximum power dissipation of 7200 mW. It has an overall accuracy of ±3 %. This voltage regulation device&s;s single output can produce a current up to 1.5 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.7 V that does not exceed 5.5 V. With a fixed output that has a voltage of 2.5 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 1mVTyp and line regulation of 0.01%/VTyp. Its maximum power dissipation is 7200 mW. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its polarity is positive. This voltage regulation device has an operating temperature range of -55 °C to 125 °C.

Chip1Stop:
LDO Regulator Pos 2.5V 1.5A 20-Pin HTSSOP EP T/R
