快速瞬态响应1 -A低压差稳压器 FAST-TRANSIENT-RESPONSE 1-A LOW-DROPOUT VOLTAGE REGULATORS
This device is designed to have a fast transient response and be stable with 10-µF low ESR capacitors. This combination provides high performance at a reasonable cost.
Because the PMOS device behaves as a low-value resistor, the dropout voltage is very low typically 230 mV at an output current of 1 A for the TPS76850 and is directly proportional to the output current. Additionally, since the PMOS pass element is a voltage-driven device, the quiescent current is very low and independent of output loading typically 85 µA over the full range of output current, 0 mA to 1 A. These two key specifications yield a significant improvement in operating life for battery-powered systems. This LDO family also features a sleep mode; applying a TTL high signal to EN enable shuts down the regulator, reducing the quiescent current to less than 1 µA at TJ = 25°C.
Power good PG is an active high output, which can be used to implement a power-on reset or a low-battery indicator.
The TPS768xx is offered in 1.5-V, 1.8-V, 2.5-V, 2.7-V, 2.8-V, 3.0-V, 3.3-V, and 5.0-V fixed-voltage versions and in an adjustable version programmable over the range of 1.2 V to 5.5 V. Output voltage tolerance is specified as a maximum of 2% over line, load, and temperature ranges. The TPS768xx family is available in a 20-pin PWP package.
输出接口数 1
输入电压DC 10.0V max
输出电压 1.2V ~ 5.5V
输出电流 1 A
供电电流 125 µA
耗散功率 7200 mW
静态电流 0.085 mA
输出电容类型 Ceramic
跌落电压 230 mV
调节输出数 1
输入电压Max 10 V
输入电压Min 2.7 V
输出电压Max 5.5 V
输出电压Min 1.2 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 7200 mW
精度 ±2 %
输入电压 10V ~ 2.7V
安装方式 Surface Mount
引脚数 20

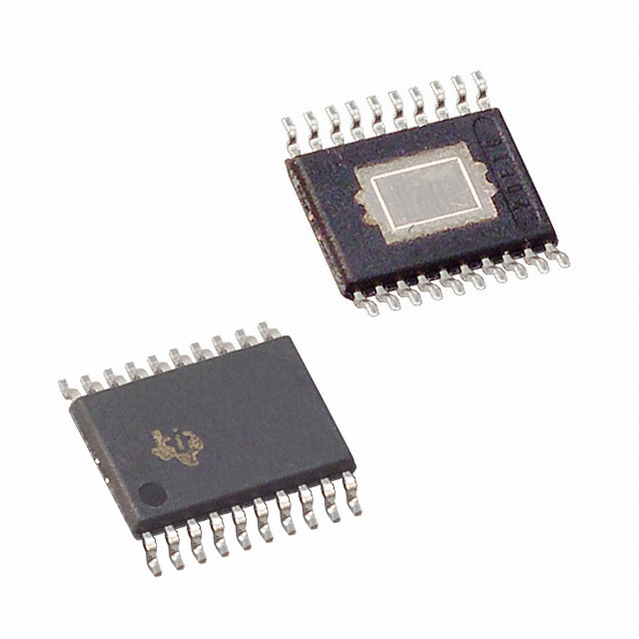

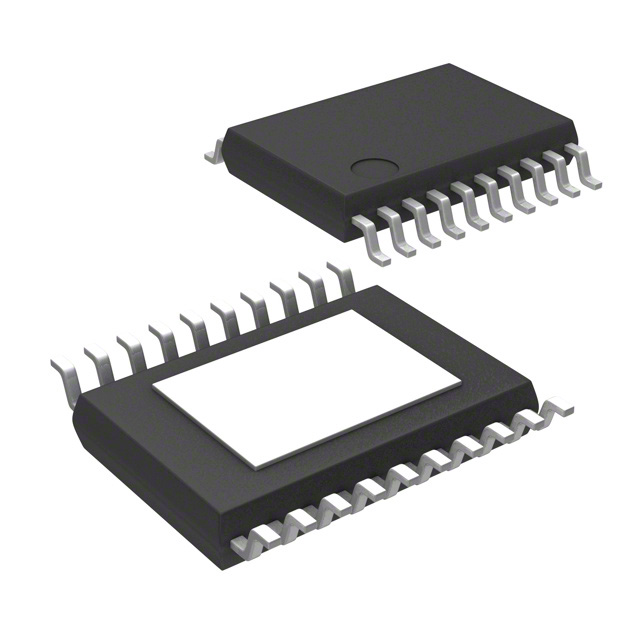

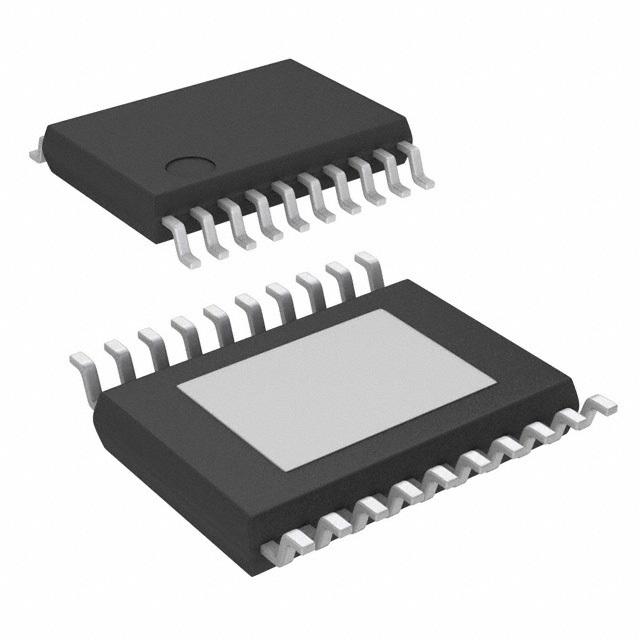

封装 HTSSOP-20
封装 HTSSOP-20
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS76801QPWPREP TI 德州仪器 | 当前型号 | 当前型号 |
TPS76801QPWP 德州仪器 | 完全替代 | TPS76801QPWPREP和TPS76801QPWP的区别 |
TPS76801QPWPRQ1 德州仪器 | 完全替代 | TPS76801QPWPREP和TPS76801QPWPRQ1的区别 |
TPS76801QPWPR 德州仪器 | 类似代替 | TPS76801QPWPREP和TPS76801QPWPR的区别 |
