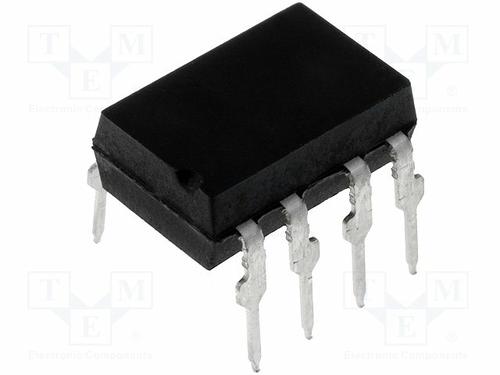

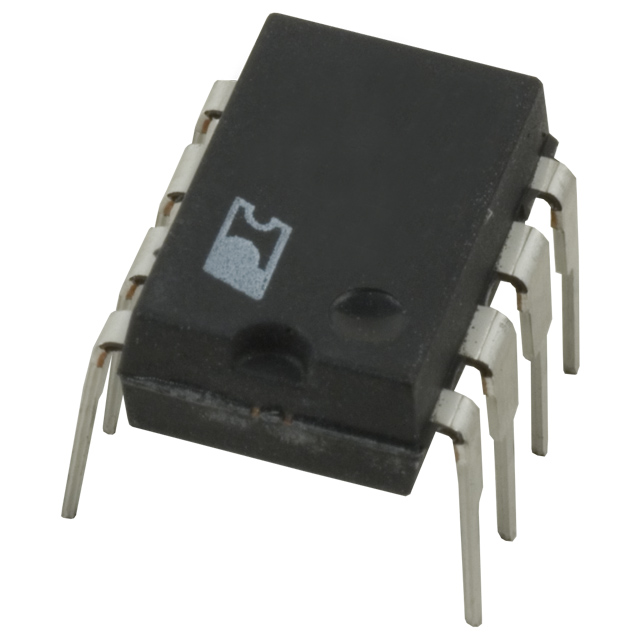

POWER INTEGRATIONS  TOP223PN  芯片, PWM开关

The is a TOPSwitch-II family 3-terminal Off-line PWM Switch IC with 25W single and 15W wide range. Many significant circuit enhancements that reduce the sensitivity to board layout and line transients now make the design even. It extends the power range from 100 to 150W for 100/115/230VAC input and from 50 to 90W for 85 to 265VAC universal input. It incorporates all functions necessary for a switched mode control system into this monolithic IC.

.

Lowest component count switcher solution

.

Very low AC/DC losses - up to 90% efficiency

.

Built-in auto-restart and current limiting

.

Latching thermal shutdown for system level protection

.

Works with primary or opto feedback

.

Stable in discontinuous or continuous conduction mode

.

Source connected tab for low EMI

.

Circuit simplicity and design tools reduce time to market
