具有反向电流保护和使能功能的 150mA、30V、超低 IQ、低压降稳压器 5-SOT-23 -40 to 125
The TPS709xx series of linear regulators are ultralow, quiescent current devices designed for power-sensitive applications. A precision band-gap and error amplifier provides 2% accuracy over temperature. Quiescent current of only 1 µA makes these devices ideal solutions for battery-powered, always-on systems that require very little idle-state power dissipation. These devices have thermal-shutdown, current-limit, and reverse-current protections for added safety.
These regulators can be put into shutdown mode by pulling the EN pin low. The shutdown current in this mode goes down to 150 nA, typical.
The TPS709xx series is available in WSON-6 and SOT-23-5 packages.
输出接口数 1
输出电压 3.3 V
输出电流 150 mA
静态电流 1.00 µA
输出电容类型 Ceramic
跌落电压 300 mV
调节输出数 1
输入电压Max 30 V
输入电压Min 2.7 V
输出电流Max 0.15 A
工作温度Max 125 ℃
工作温度Min 40 ℃
精度 ±1 %
输入电压 ≤30 V
安装方式 Surface Mount
引脚数 5

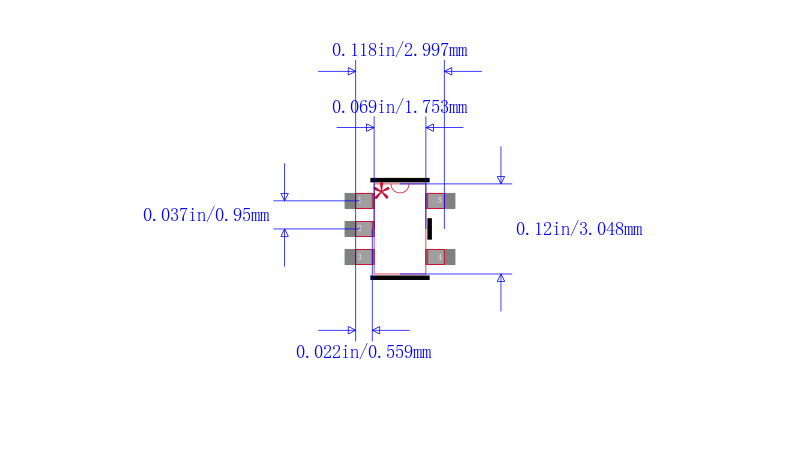

封装 SOT-23-5
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TPS709B33DBVR TI 德州仪器 | 当前型号 | 当前型号 |
TPS709B33DBVT 德州仪器 | 类似代替 | TPS709B33DBVR和TPS709B33DBVT的区别 |
