测序双输出低输入电压DSP电源控制器 DUAL-OUTPUT LOW-INPUT-VOLTAGE DSP POWER SUPPLY CONTROLLER WITH SEQUENCING
If you need to change voltage levels in your DC circuit design use the pwm dc to dc DC voltage controller from Texas Instruments. This DC voltage controller has 2 outputs. This DC voltage controller has an input voltage of 2.8 to 5.5 V. You can operate this at a switching frequency of 400 kHz. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This DC voltage controller has a minimum operating temperature of -40 °C and a maximum of 125 °C.
输出接口数 2
输出电压 1.3V ~ 3.3V
输出电流 2 A
耗散功率 3580 mW
输出功率 3.58 W
开关频率 300 kHz
占空比 90 %
输入电压Max 5.5 V
输入电压Min 2.8 V
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 3580 mW
电源电压 2.8V ~ 5.5V
输入电压 2.8V ~ 5.5V
安装方式 Surface Mount
引脚数 28

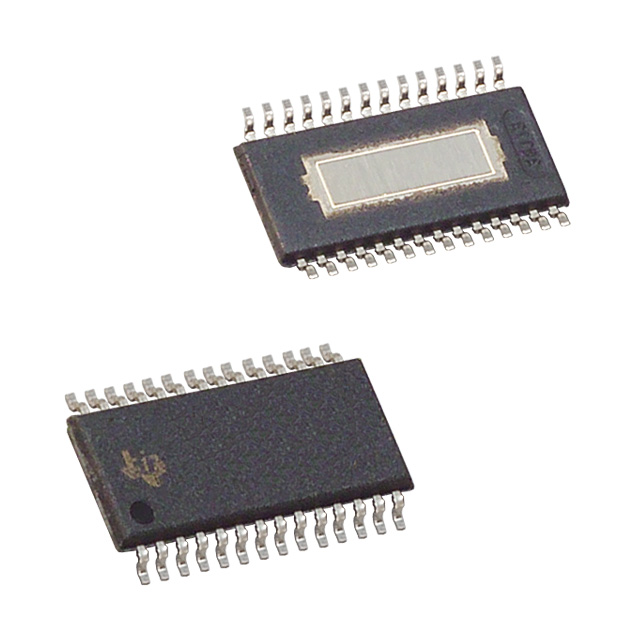

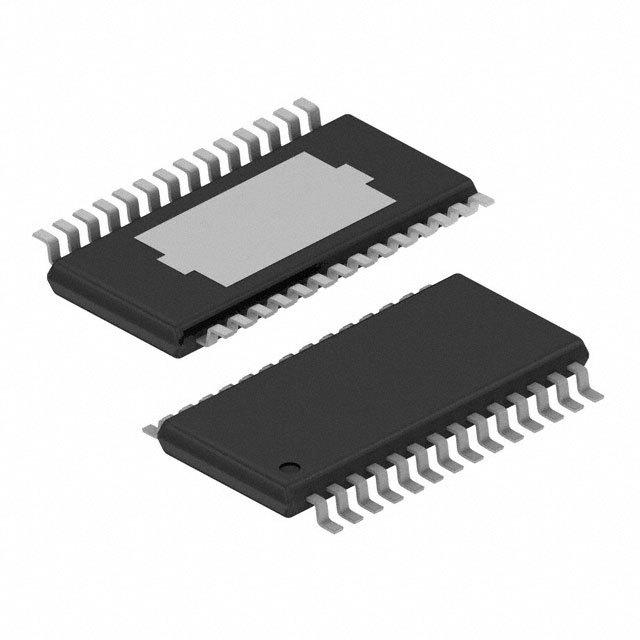

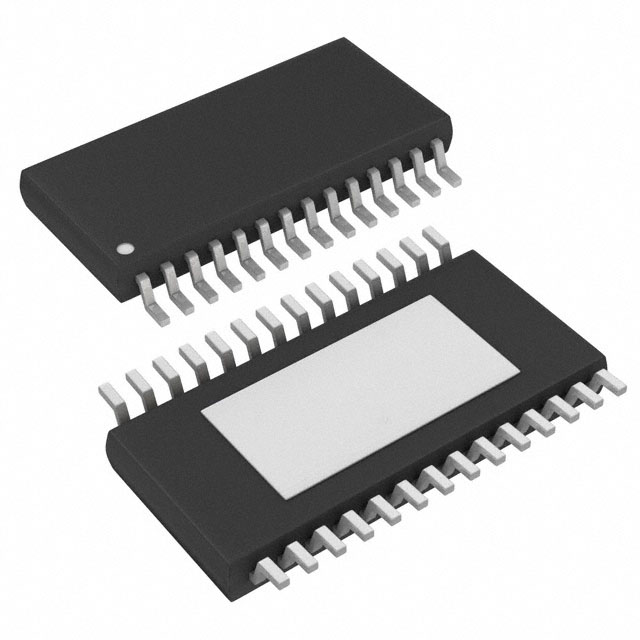

封装 HTSSOP-28
封装 HTSSOP-28
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS56302PWP TI 德州仪器 | 当前型号 | 当前型号 |
TPS56302PWPG4 德州仪器 | 完全替代 | TPS56302PWP和TPS56302PWPG4的区别 |
TPS56302PWPR 德州仪器 | 功能相似 | TPS56302PWP和TPS56302PWPR的区别 |
