TPS72301DBVTG4

TEXAS INSTRUMENTS  TPS72301DBVTG4  电压稳压器, LDO, 可调, -10V至-2.7V输入, 280mV压差, -10V至-1.2V/0.2A输出, SOT-23-5

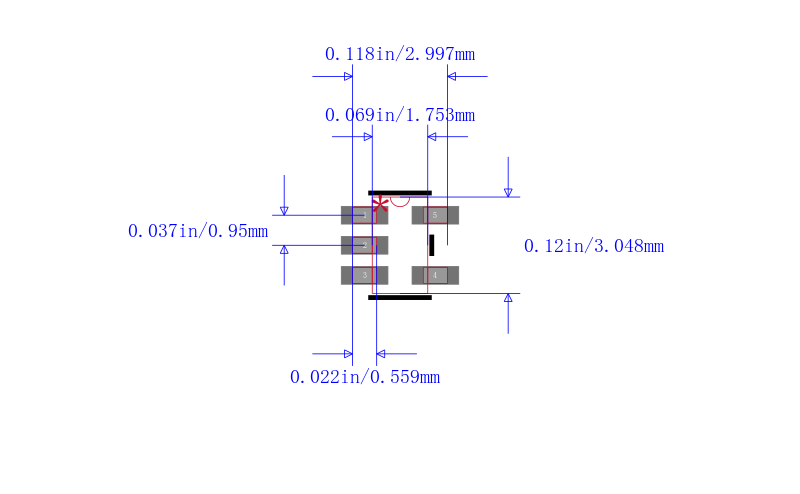

The is a Negative Output Low-dropout Linear Regulator that offers an ideal combination of features to support low noise applications. This device is capable of operating with input voltages from -10 to -2.7V and support outputs from -10 to -1.2V. This regulator is stable with small, low-cost ceramic capacitors and includes enable EN and noise reduction NR functions. Thermal short-circuit and over-current protections are provided by internal detection and shutdown logic. High PSRR 65dB at 1kHz and low noise 60µVRMS make the TPS72301 ideal for low-noise applications. It uses a precision voltage reference to achieve 2% overall accuracy over load, line and temperature variations. The TPS72301 has internal circuitry that monitors and limits output current to protect the regulator from damage under all load conditions. When output current reaches the output current limit, protection circuitry turns on, reducing output voltage to ensure that current does not increase.

.

Ultralow noise 60µVRMS typical

.

High PSRR 65dB typical at 1kHz

.

Low dropout voltage 280mV typical at 200mA, 2.5V

.

Stable with a 2.2µF ceramic output capacitor

.

<2µA Typical quiescent current in shutdown mode

.

2% Overall accuracy line, load, temperature

.

Thermal and over-current protection

.

Green product and no Sb/Br

This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
