3 V至6 V输入, 6 A输出同步降压型PWM具有集成FET SWITCHER ( SWIFTâ ?? ¢ ) 3 V TO 6 V INPUT, 6 A OUTPUT SYNCHRONOUS BUCK PWM SWITCHER WITH INTEGRATED FETs SWIFTâ¢
Adjust the voltage level of your devices with this step down DC to DC converter from Texas Instruments. This converter"s single output can produce a current up to 6 A. This will operate at a minimum voltage of 3 V and a maximum voltage of 6 V, making it easy to control the power in your circuit. With an adjustable output that has a voltage of 0.9 to 4.5 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 0.03%/A and line regulation of 0.07%/V. It has a switching frequency of 425|662|245 to 773 kHz. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This converter has a minimum operating temperature of -55 °C and a maximum of 125 °C.
输出接口数 1
输出电压 0.9V ~ 4.5V
输出电流 6 A
静态电流 9.80 mA
调节输出数 1
输出功率 5.49 W
开关频率 700 kHz
拓扑结构 Buck
输入电压Max 6 V
输入电压Min 3 V
输出电压Max 5.4 V
输出电压Min 0.891 V
输出电流Max 6 A
工作温度Max 125 ℃
工作温度Min -55 ℃
输入电压 3V ~ 6V
安装方式 Surface Mount

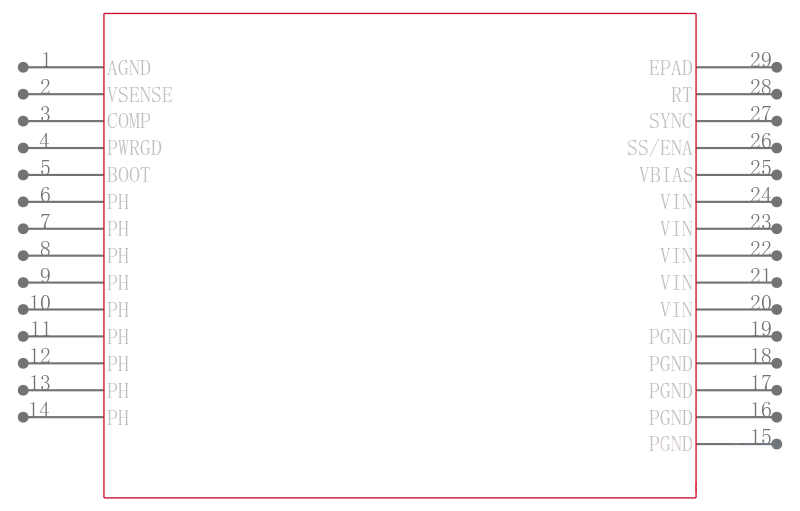

引脚数 28

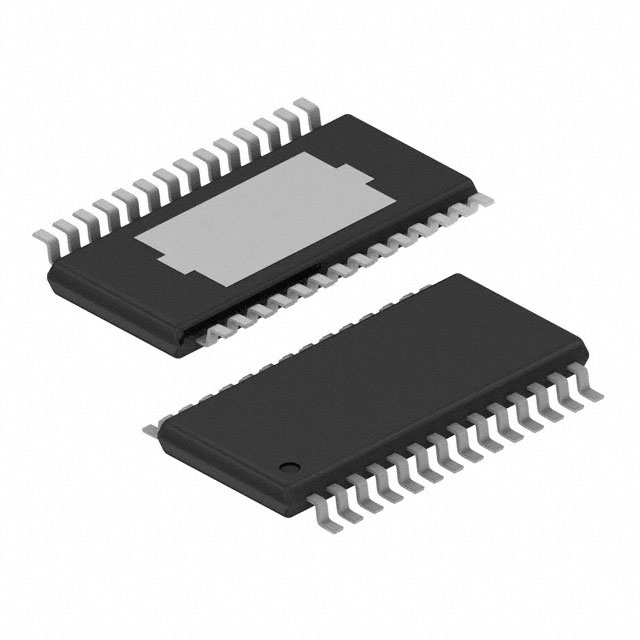

封装 HTSSOP-28
封装 HTSSOP-28
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS54610MPWPREP TI 德州仪器 | 当前型号 | 当前型号 |
TPS54610MPWPREPG4 德州仪器 | 类似代替 | TPS54610MPWPREP和TPS54610MPWPREPG4的区别 |
V62/05622-01XE 德州仪器 | 类似代替 | TPS54610MPWPREP和V62/05622-01XE的区别 |
