开关稳压器 TPS57140-EP 1.5-A 42-V STEP-DOWN DC-DC CONVERTER WITH Eco-mode CONTROL 10-VSON -55 to 125
The TPS57140-EP device is a 42-V, 1.5-A step-down regulator with an integrated high-side MOSFET. Current-mode control provides simple external compensation and flexible component selection. A low-ripple pulse-skip mode reduces the no-load, regulated output supply current to 116 µA. Using the enable pin reduces the shutdown supply current to 1.5 µA.
UVLO is internally set at 2.5 V, but can be increased using the enable pin. The slow-start pin, which is also configurable for sequencing or tracking, controls the output voltage start-up ramp. An open-drain power-good signal indicates the output is within 92% to 109% of its nominal voltage.
A wide switching-frequency range allows optimization of efficiency and external component size. Frequency foldback and thermal shutdown protect the part during an overload condition.
The TPS57140-EP is available in a 10-pin VSON package DRC.
输出接口数 1
输出电压 0.8V ~ 93V
输出电流 1.5 A
静态电流 116 µA
开关频率 100kHz ~ 2.5MHz
开关电流 2.7 A
输入电压Max 42 V
输入电压Min 3.5 V
输出电压Max 39 V
输出电压Min 0.8 V
输出电流Max 1.5 A
工作温度Max 125 ℃
工作温度Min -55 ℃
输入电压 42 V
安装方式 Surface Mount
引脚数 10

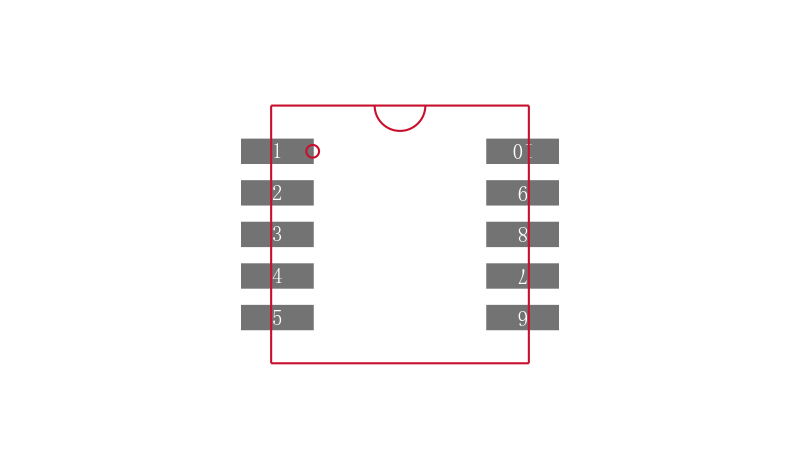

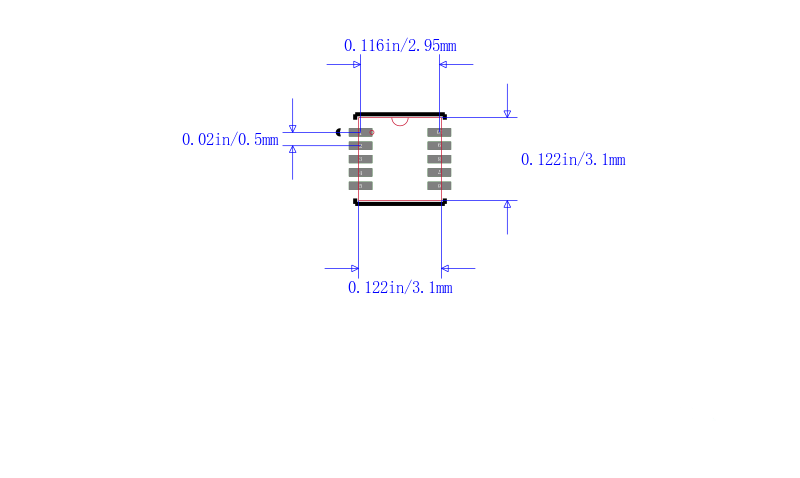

封装 VFDFN-10
封装 VFDFN-10
工作温度 -55℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
