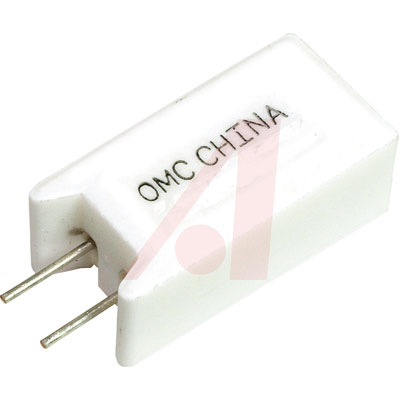

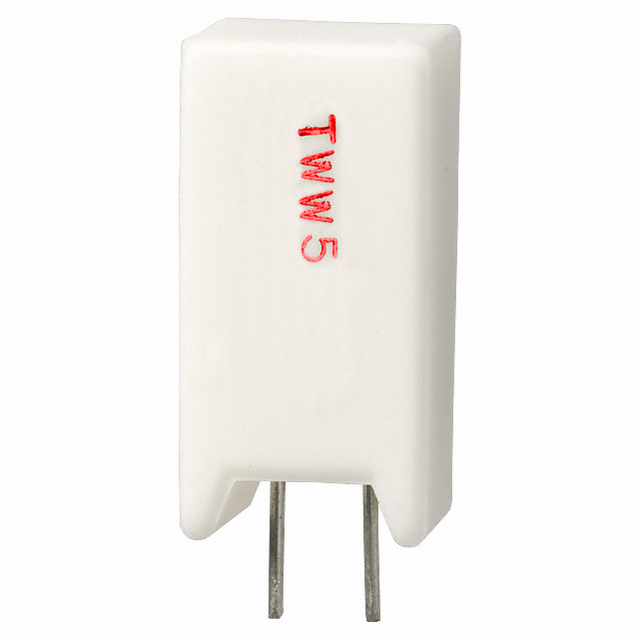

OHMITE TWW5J8R2E 绕线电阻, 8.2Ω, 5W, 5%
8.2 Ohms ±5% 5W 径向 通孔器 耐燃,安全 绕线
得捷:
RES 8.2 OHM 5% 5W RADIAL
立创商城:
8.2Ω ±5% 5W
贸泽:
Wirewound Resistors - Through Hole 5watt 8.2ohm 5% Vertical Mount
e络盟:
绕线电阻, 8.2 Ω, 5W, 5%
Allied Electronics:
Resistor; Wirewound; Res 8.2 Ohms; Pwr-Rtg5 W; Tol 5%; Radial; Ceramic Housed
Chip1Stop:
Res Wirewound 8.2 Ohm 5% 5W 400ppm/ C Ceramic RDL
Verical:
Res Wirewound 8.2 Ohm 5% 5W ±400ppm/C Ceramic RDL
Newark:
# OHMITE TWW5J8R2E Through Hole Resistor, Wirewound, 8.2 ohm, 350 V, Radial Leaded, 5 W, ± 5%, TWW Series
MASTER:
Res Wirewound 8.2 Ohm 5% 5W ±400ppm/°C Ceramic RDL
Online Components:
Res Wirewound 8.2 Ohm 5% 5W ±400ppm/°C Ceramic RDL
Electro Sonic:
Res Wirewound 8.2 Ohm 5% 5W ±400ppm/°C Ceramic RDL
额定电压DC 350 V
容差 ±5 %
额定功率 5 W
产品系列 TWW
电阻 8.2 Ω
阻值偏差 ±5 %
额定电压 350 V
安装方式 Through Hole
引脚数 2

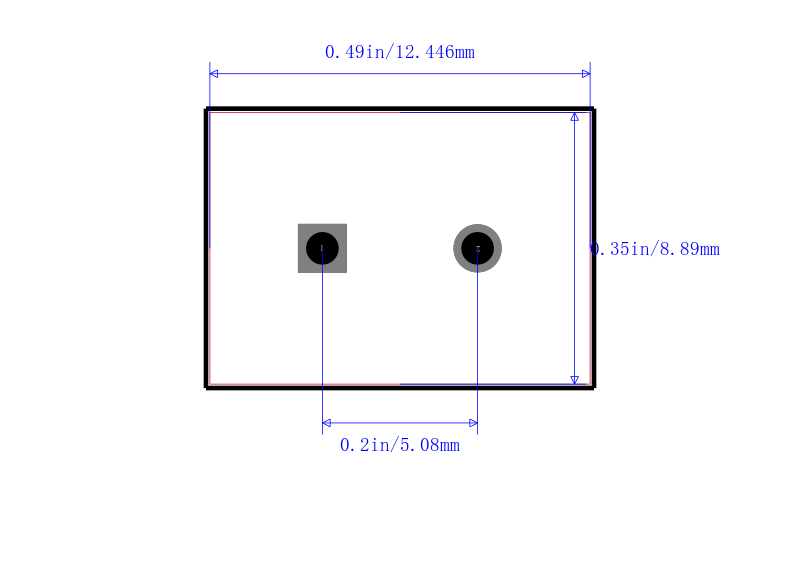

封装 Radial Leaded

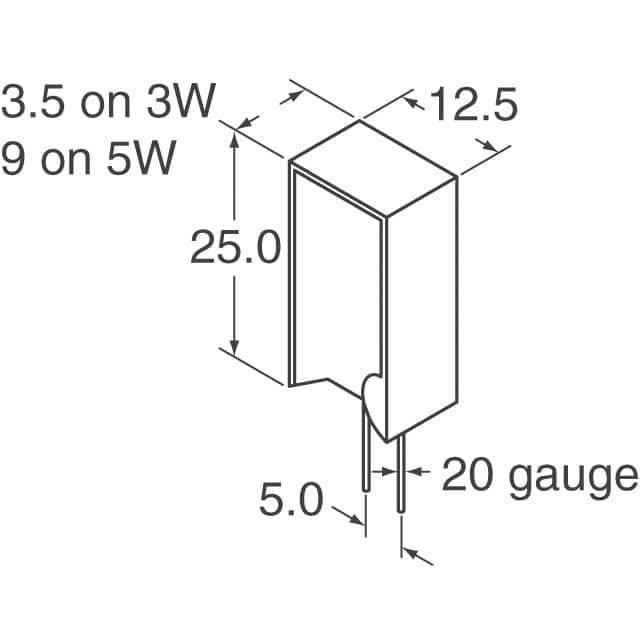

长度 12.5 mm
宽度 9 mm
高度 25 mm
封装 Radial Leaded
工作温度 -55℃ ~ 275℃
温度系数 ±400 ppm/℃
产品生命周期 Active
包装方式 Bulk
最小包装 1000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8533210080



| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TWW5J8R2E Ohmite | 当前型号 | 当前型号 |
TWW5J8R2 Ohmite | 功能相似 | TWW5J8R2E和TWW5J8R2的区别 |
