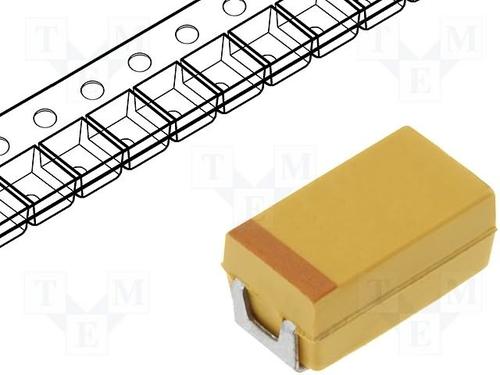

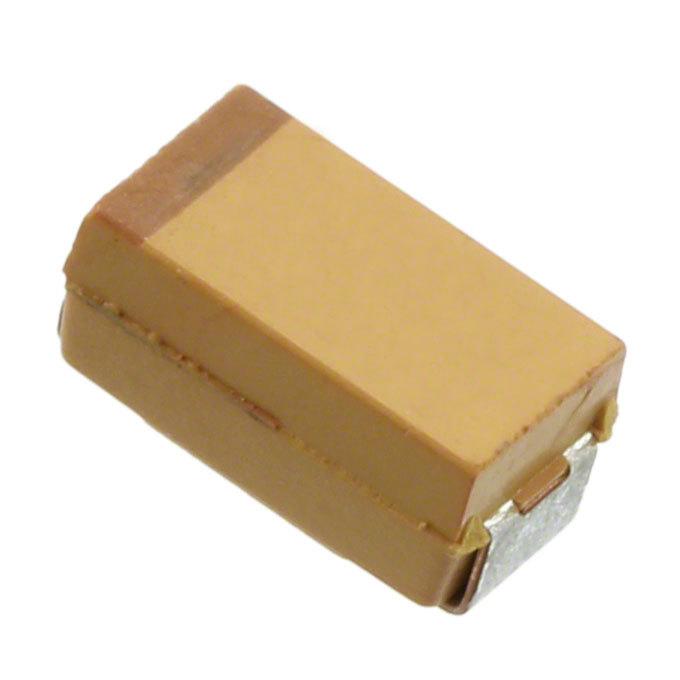

AVX TCJC225M063R0200 聚合物钽电容, 2.2UF, 63V, 2312
Do you need a high performing capacitor for your electronic circuit? Then this polymer electrolyte from is the capacitor you"ve been looking for! It can withstand a voltage of 63 VDC. It has 2 terminals. Its capacitance value is 2.2uF. This product is 6 mm long, 2.6 mm tall and 3.2 mm deep. Its leakage current is 13.9 μA. This polymer electrolyte has a minimum operating temperature of -55 °C and a maximum of 105 °C.
额定电压DC 63.0 V
工作电压 63 VDC
电容 2.2 µF
等效串联电阻ESR 200 mΩ
容差 ±20 %
产品系列 TCJ polymer
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 63 V
安装方式 Surface Mount
引脚数 2
封装 6032
高度 2.6 mm
封装 6032
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 500
寿命(小时) 2000h @105℃
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TCJC225M063R0200 AVX 艾维克斯 | 当前型号 | 当前型号 |
