TLE4267G

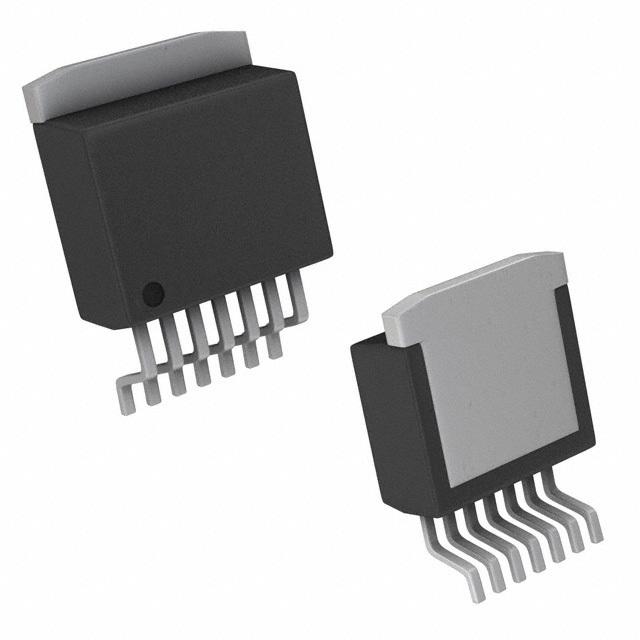

INFINEON  TLE4267G  固定电压稳压器, LDO, 5.5V至40V, 300mV压差, 5V输出, 400mA输出, TO-263-7

Summary of Features:

.

Output voltage tolerance ≤ ±2%

.

400 mA output current capability

.

Low-drop voltage

.

Very low standby current consumption

.

Input voltage up to 40 V

.

Overvoltage protection up to 60 V ≤ 400 ms

.

Reset function down to 1 V output voltage

.

ESD protection up to 2000 V

.

Adjustable reset time

.

On/off logic

.

Overtemperature protection

.

Reverse polarity protection

.

Short-circuit proof

.

Wide temperature range

.

Suitable for use in automotive electronics

.

Green Product RoHS compliant

.

AEC Qualified

Benefits:

.

Robust protection features

.

Wide input operation and temperature range

.

integrated overvolatege detection

Target Applications:

.

Automotive general

.

Truckcommercial vehicle control units
