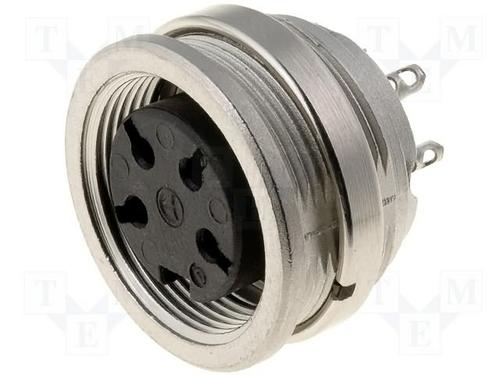

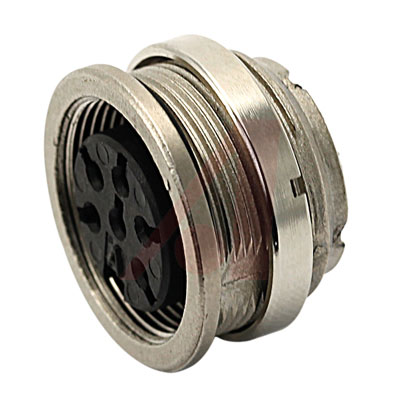

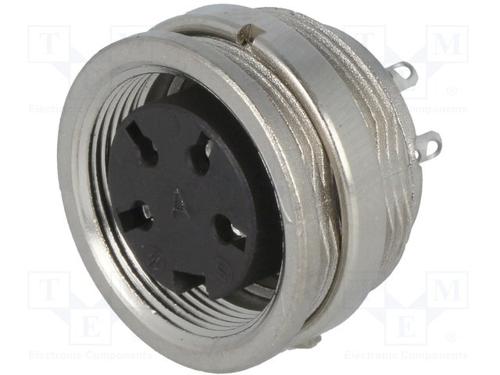

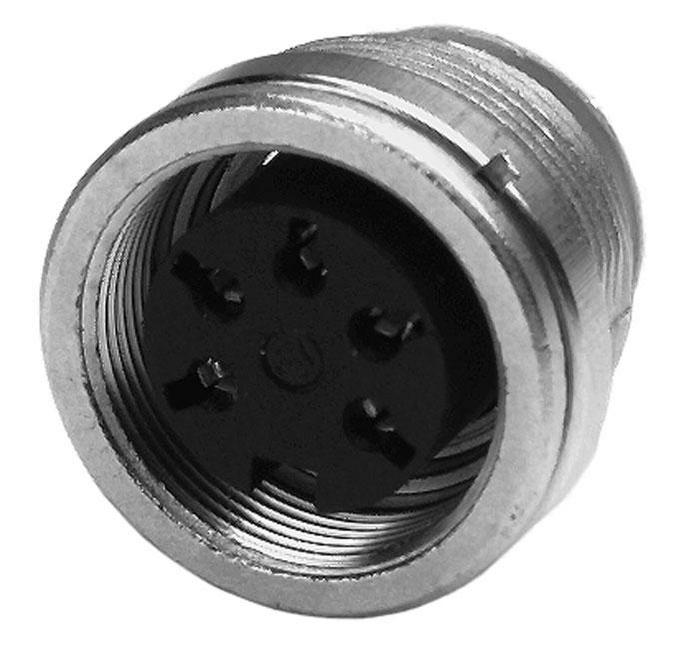

AMPHENOL TUCHEL T 3303 000 圆形连接器, C091A系列, 插座, 4 触点, 母, 焊接, 面板安装
The C091A series Circular Connector with metal screw coupling and plastic back shell. It has 2 to 8, 12 and 14 contacts, IP40 when properly mated.
- .
- Screw locking according to IEC 61076-2-106
- .
- Metal locking ring
- .
- 2 to 8, 12 and 14 positions for crimp and solder
- .
- Internal strain relief
- .
- Male and female cable connectors straight and angled
- .
- Male and female receptacles for front and rear panel mounting and PCB mounting
- .
- IP40 Protection
触点数 4
极性 Female
触点电镀 Silver
额定电流 5 A
绝缘电阻 10000 MΩ
针脚数 4
额定电流Max 5 A
工作温度Max 100 ℃
工作温度Min -40 ℃
额定电压Max 300 VAC
额定电压 300 V
接触电阻Max 5 mΩ
安装方式 Panel, Solder
引脚数 4
触点材质 Brass
绝缘材质 Plastic
工作温度 -40℃ ~ 100℃
外壳材质 Thermoplastic
包装方式 Bulk
制造应用 Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
T 3303 000 Amphenol 安费诺 | 当前型号 | 当前型号 |
09 0112 00 04 Binder | 功能相似 | T 3303 000和09 0112 00 04的区别 |
